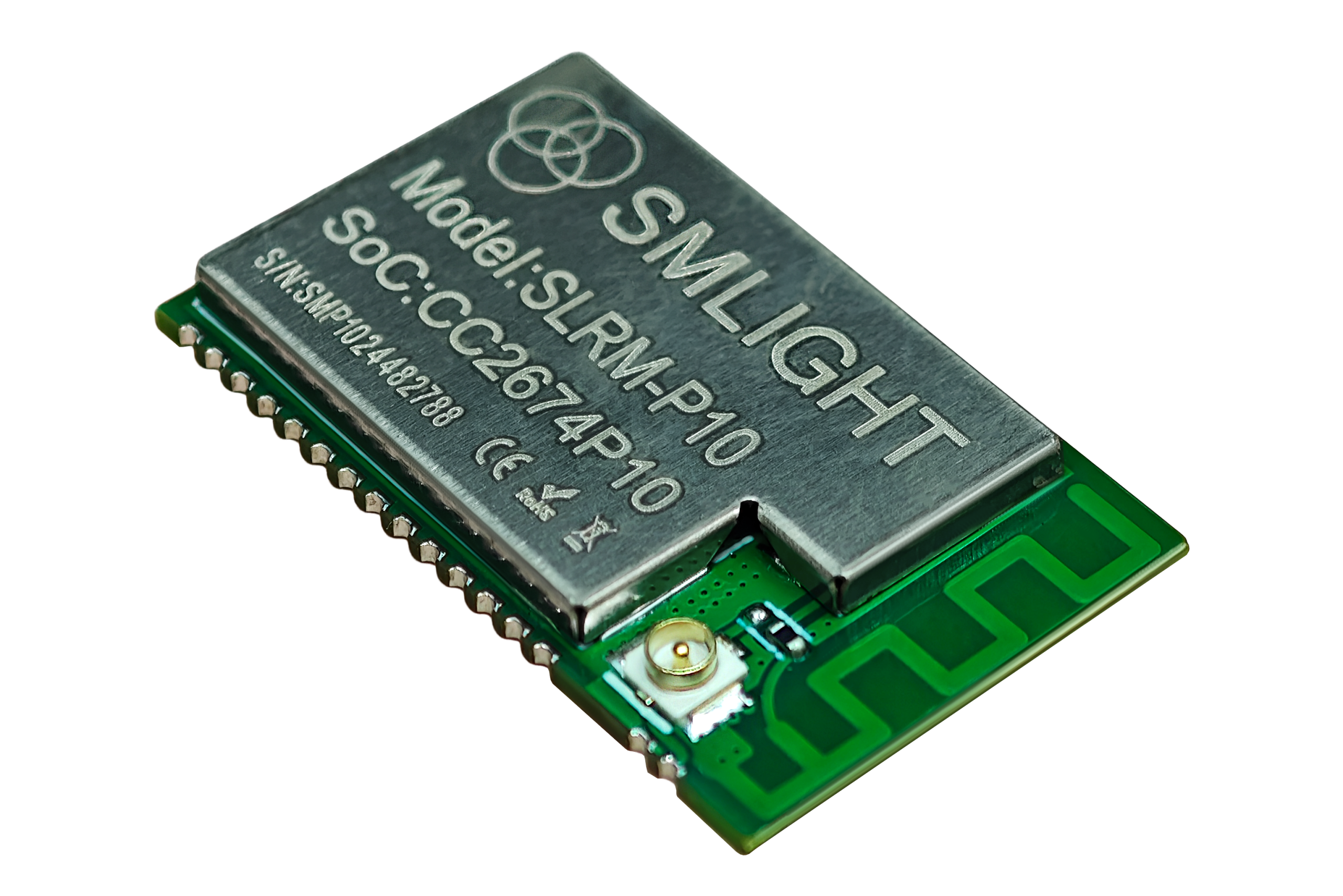

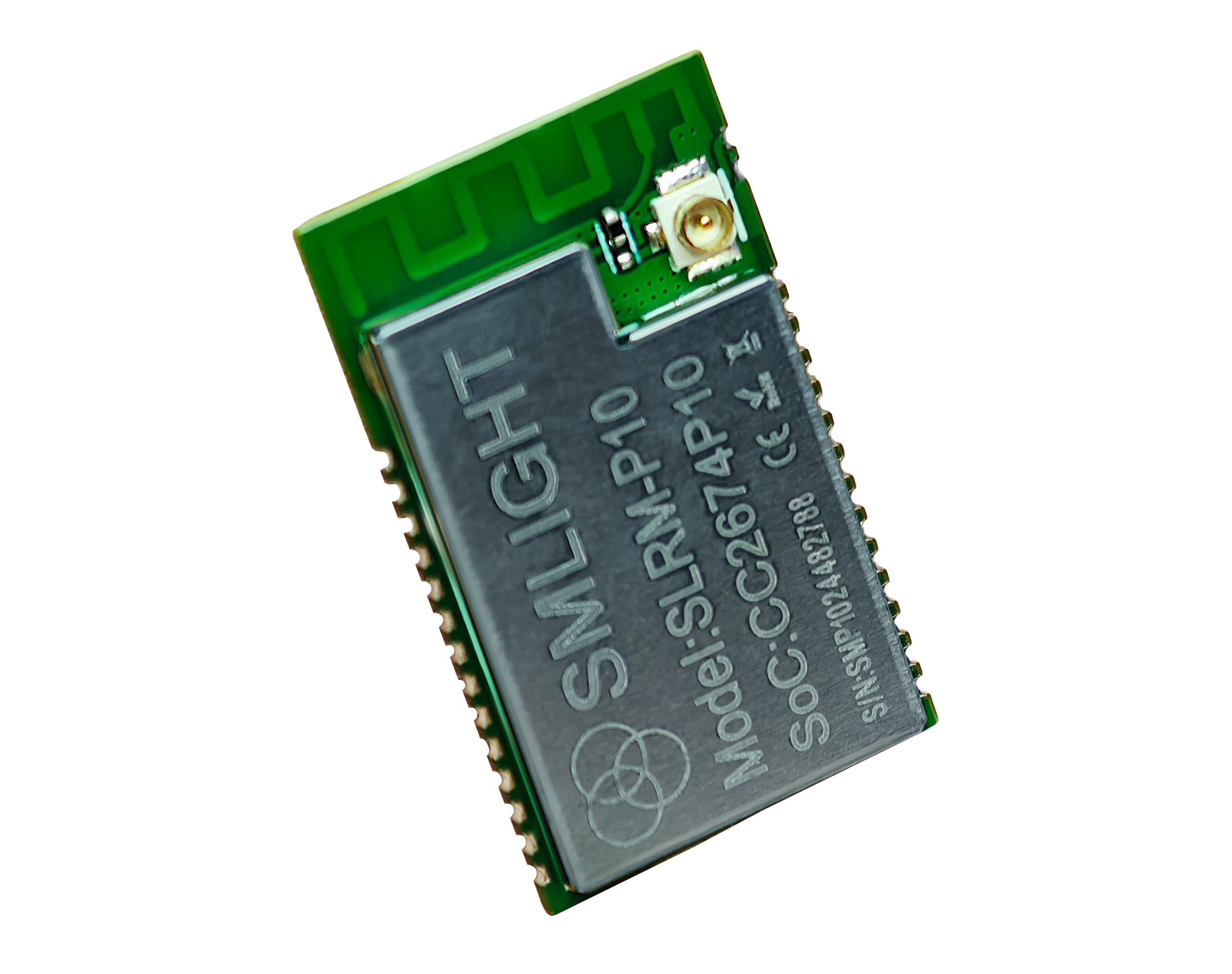

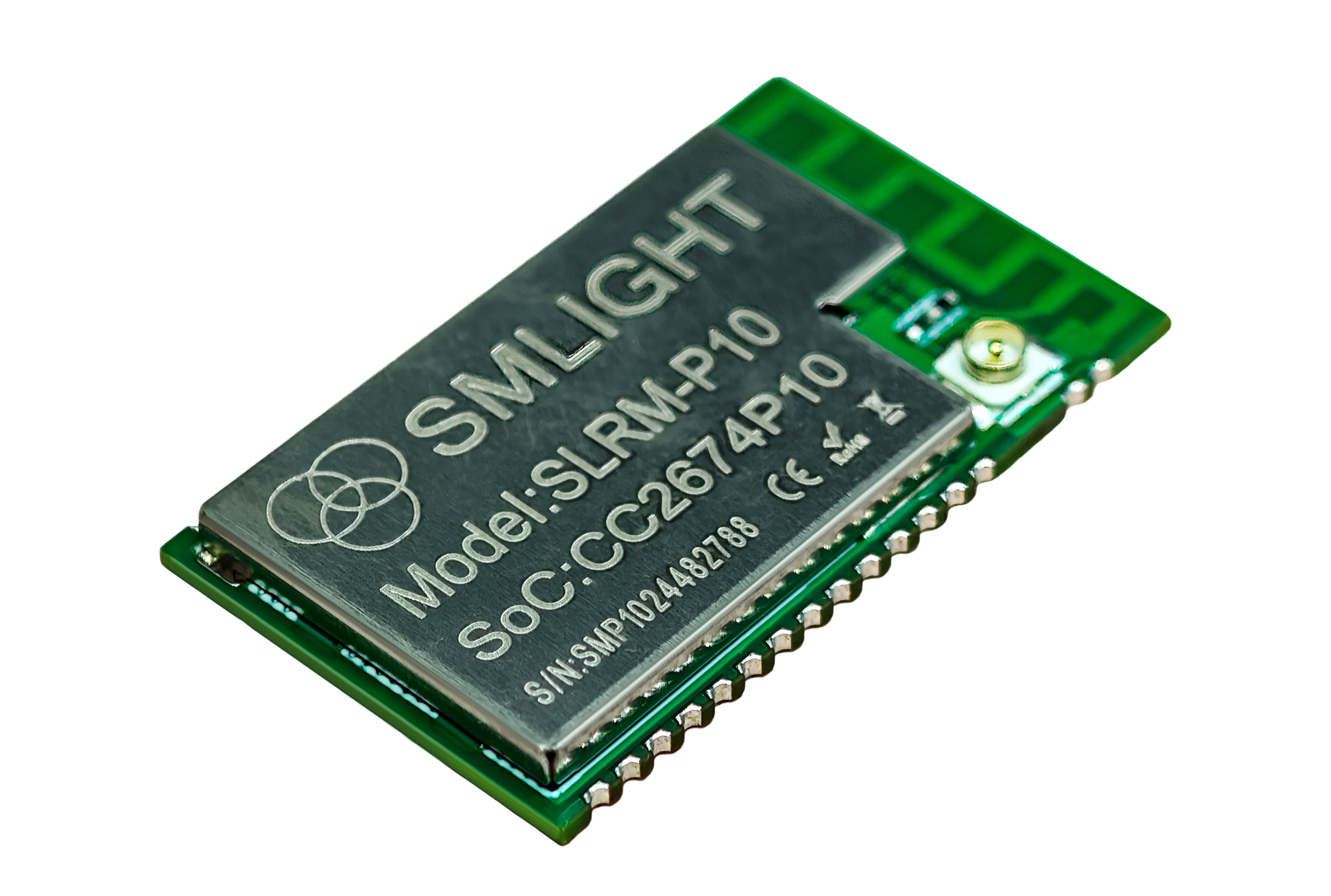

SLRM-P10 is a high-performance, multi-protocol radio module built around the advanced Texas Instruments CC2674P10 wireless SoC. Designed for demanding IoT, smart home, and industrial automation applications, the module combines powerful wireless connectivity with ultra-low power operation and flexible GPIO configuration. Supporting Bluetooth® LE, Zigbee®, Thread, and IEEE 802.15.4, the SLRM-P10 is ideal for developers seeking a compact and future-proof RF module with robust RF output and versatile integration options.
At its core, the CC2674P10 features a powerful 48 MHz ARM® Cortex®-M33 core, integrated power amplifier (up to +20 dBm output), hardware crypto engine, and ample memory resources — including up to 1 MB Flash and 296 KB RAM — making SLRM-P10 suitable for secure, scalable, and high-throughput wireless communication.
With a compact footprint based on the SLMRv1 platform, SLRM-P10 ensures effortless replacement or upgrade in space-constrained designs.
General
- Module Name: SLMR-P10
- SoC: Texas Instruments CC2674P10
- Core MCU: 32-bit ARM® Cortex®-M33 @ 48 MHz
- Core Voltage: 1.8–3.8 V
- Operating Temperature Range: –40°C to +85°C (industrial grade)
- Package Type: Stamp-hole SMT module
- Pin Pitch: 1.27 mm

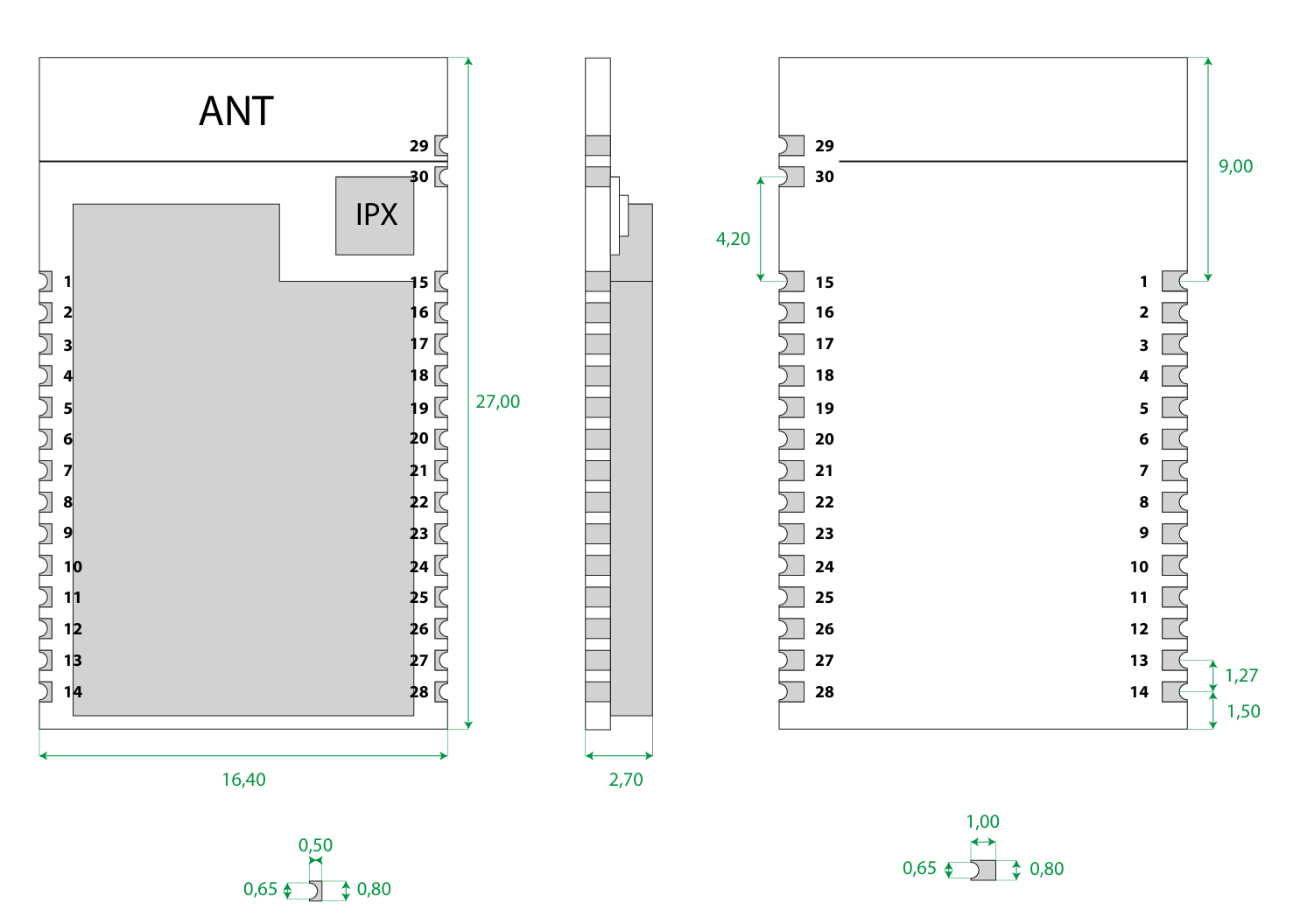

- Dimensions: 16.4 × 27.0 × 2.7 mm (SLRMv1 sizing platform)
Wireless Features
- Radio Frequency: 2.4 GHz ISM band
- Supported Protocols:
- Bluetooth® Low Energy 5.3 (LE Audio Ready)
- Zigbee® 3.0
- Thread (including Matter over Thread)
- IEEE 802.15.4
- Output Power: Up to +20 dBm (with integrated PA)
- RX Sensitivity: Up to –104 dBm (BLE 1 Mbps)
- Range: Up to 600+ meters (open space, BLE)
- Modulations:
- BLE: GFSK
- 802.15.4: O-QPSK
Performance & Memory
- Flash: Up to 1 MB
- RAM: 256 KB
- ROM (bootloader and libraries): Yes, integrated
- Non-volatile Storage: Support via Flash sectoring
Security
- Secure Boot: Yes
- Hardware Crypto Accelerator: AES-128/256, ECC, SHA-2
- Key Storage: Secure Key Storage (KSR)
- TRNG: True Random Number Generator
- Arm TrustZone®: Supported
I/O and Peripherals
- GPIOs: Up to 31 (multiplexed)
- Analog Interfaces:
- 8-channel 12-bit ADC
- 2 × DAC (digital-to-analog converter)
- Timers:
- 4 × General-purpose timers
- 1 × RTC with calendar
- Interfaces:
- UART: Up to 2
- SPI: Up to 2
- I²C: Up to 2
- PWM: Multiple (via Timer)
- QDEC: Quadrature Decoder
- Debug Interface: SWD, JTAG compatible
Power Management
- Transmit Current (@ +20 dBm): ~ 13.7 mA
- Receive Current: ~ 6.9 mA
- Deep Sleep Current: ~ 500 nA
- Power Modes:
- Active
- Idle
- Standby
- Shutdown
