SLWF-03 USER MANUAL

Introduction

About

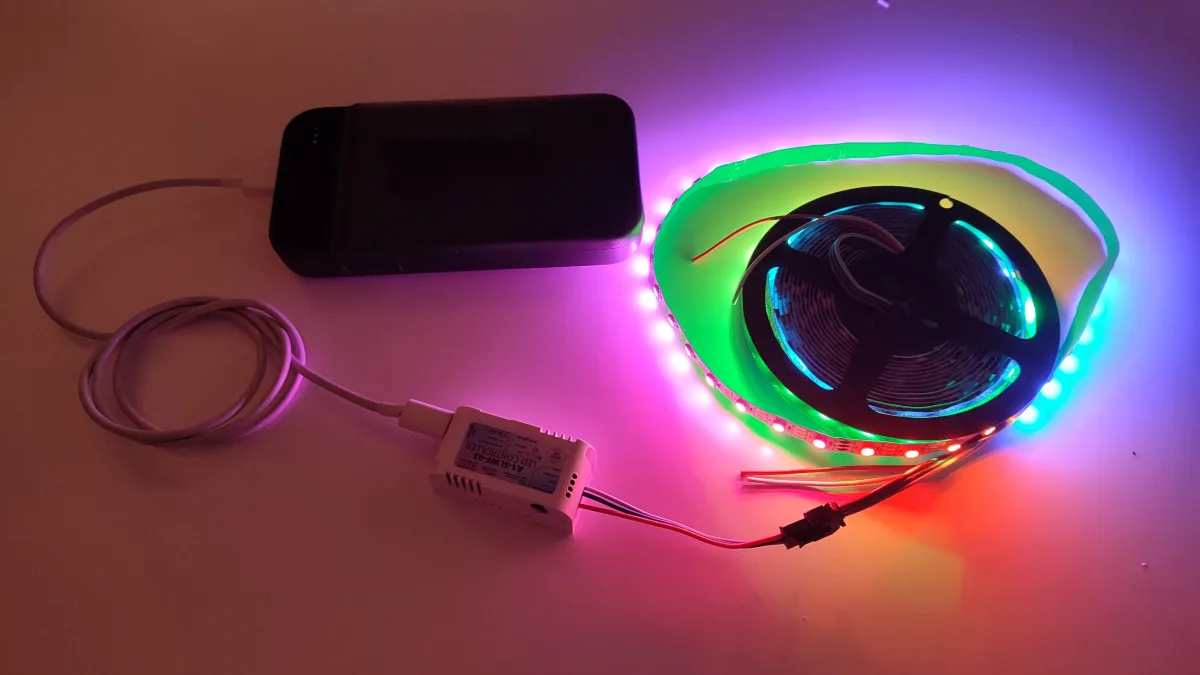

A1-SLWF-03 is the latest innovation in smart lighting technology. Designed for both enthusiasts and professionals, this compact yet powerful device offers unparalleled control over LED lighting systems. Whether you're creating dynamic lighting for a home theater, setting up intricate displays for commercial use, or experimenting with DIY lighting projects, the A1-SLWF-03 provides the flexibility and performance you need. By default, supplied pre-flashed with WLEDopen in new window firmware and ready to use, just plug-and-play.

KEY FEATURES

  • Type-C powering, forget about wirings, rare-to-find connectors. Just use stanradrd USB-Type-C cable to power your strips on!;
  • Built-in digital I2S microphone, so SLWF-03 could be used as sound-reactive controller with latest releases of WLED firmwares or ESPHome. Microphone allows to use SLWF-03 as mic inpit for voice recognition in Home Assistant;
  • Built-in IR receiver to support IR controls;
  • Built-in sensor button to control the device by the sensor;
  • 5V, 12V and 24V LED strips support. You can use most adressable LED strips that works on 5-24V power;
  • Over-the-air Zigbee and Core update;
  • Tiny design, just ;
  • Built based on the Espressif ESP32 SoC version with 2 cores. Can control up to 1500-2000 LEDs with 30FPS;
  • Built-in programmer and autoflash mode, so you can easely update or restore in case of failure;
  • 2 channels for LED strip connection in screw terminal. Could be also extended by using available pinouts on the board;
  • Can work as Voice Assistant (as microphone board) for Home Assistant;
  • Can work as a Bluetooth bridge for Home Assistant with ESPHome firmware flashed – BTProxy;
  • Easy LED wires connection through screw-terminal;
  • Full WLED connectivity and support;
  • Suits for personal and business use.

What is in the box?

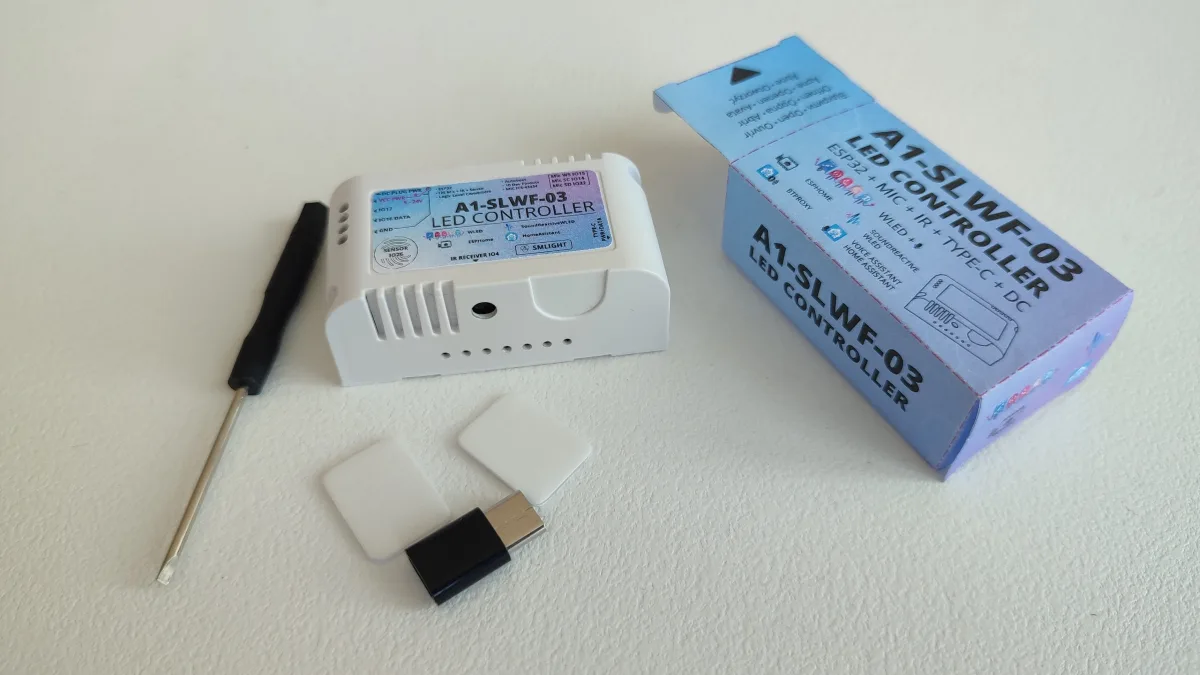

  • 1x A1-SLWF-03 WLED controller
  • 1x microUSB-to-typeC adapter (just in case you want to use as USB but do not have type-C cable)
  • 2x adhesive tapes - if you want to stock you adapter - easiest way to do that
  • 2x screws - if you want to fix your adapter by screws - easey, they are included
  • 1x screwdriver for screw-terminal - you will use it to fix by screws;
  • 1x screwdriver for screws - to connect your LED strips easely;
  • 1x screw-helper and QR-manual - even more easy screw fixing and link to this manual;

TIP

Screwdriver included in the package
