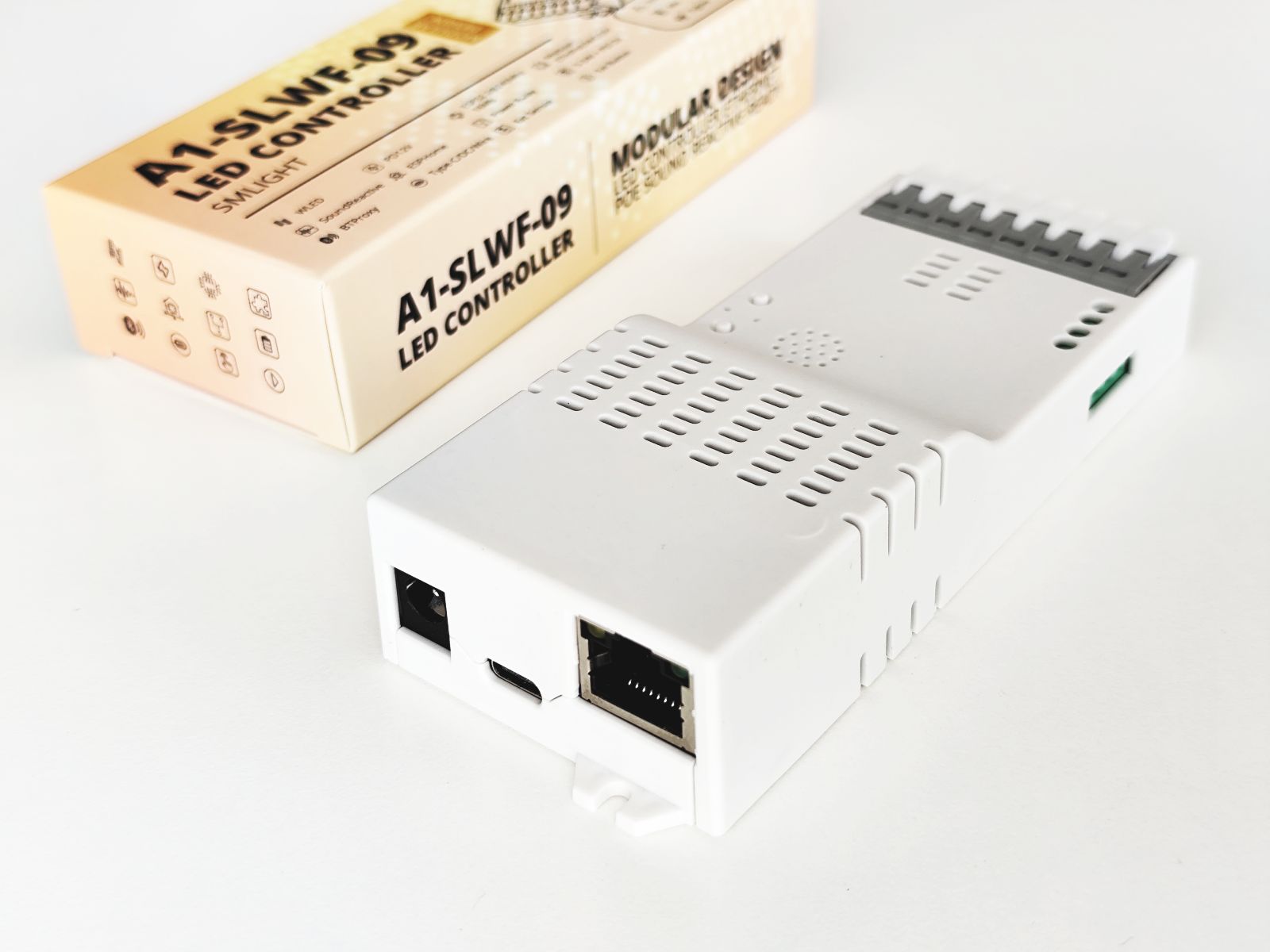

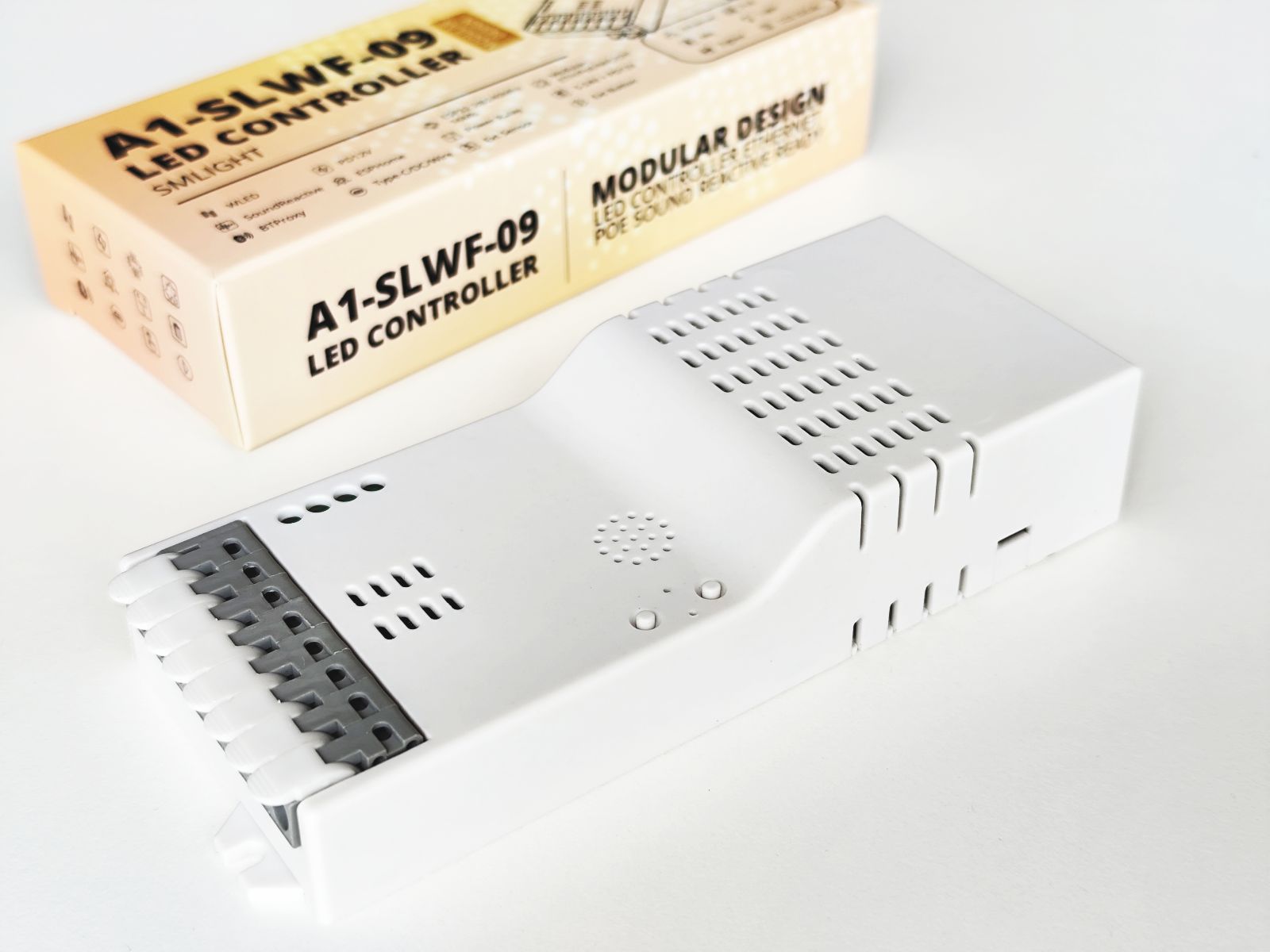

🚀 SMLIGHT A1-SLWF‑09
What you can do with A1-SLWF-09, in a nutshell:
You start with a base model device, which has the following characteristics:
- Modular: The user can install Ethernet, POE, and Digital microphone modules.
- Slim and very ‘hiding’ device. We intentionally did not put any marks on top of the enclosure, so users can install them on a white wall, and they will not catch a lot of attention.

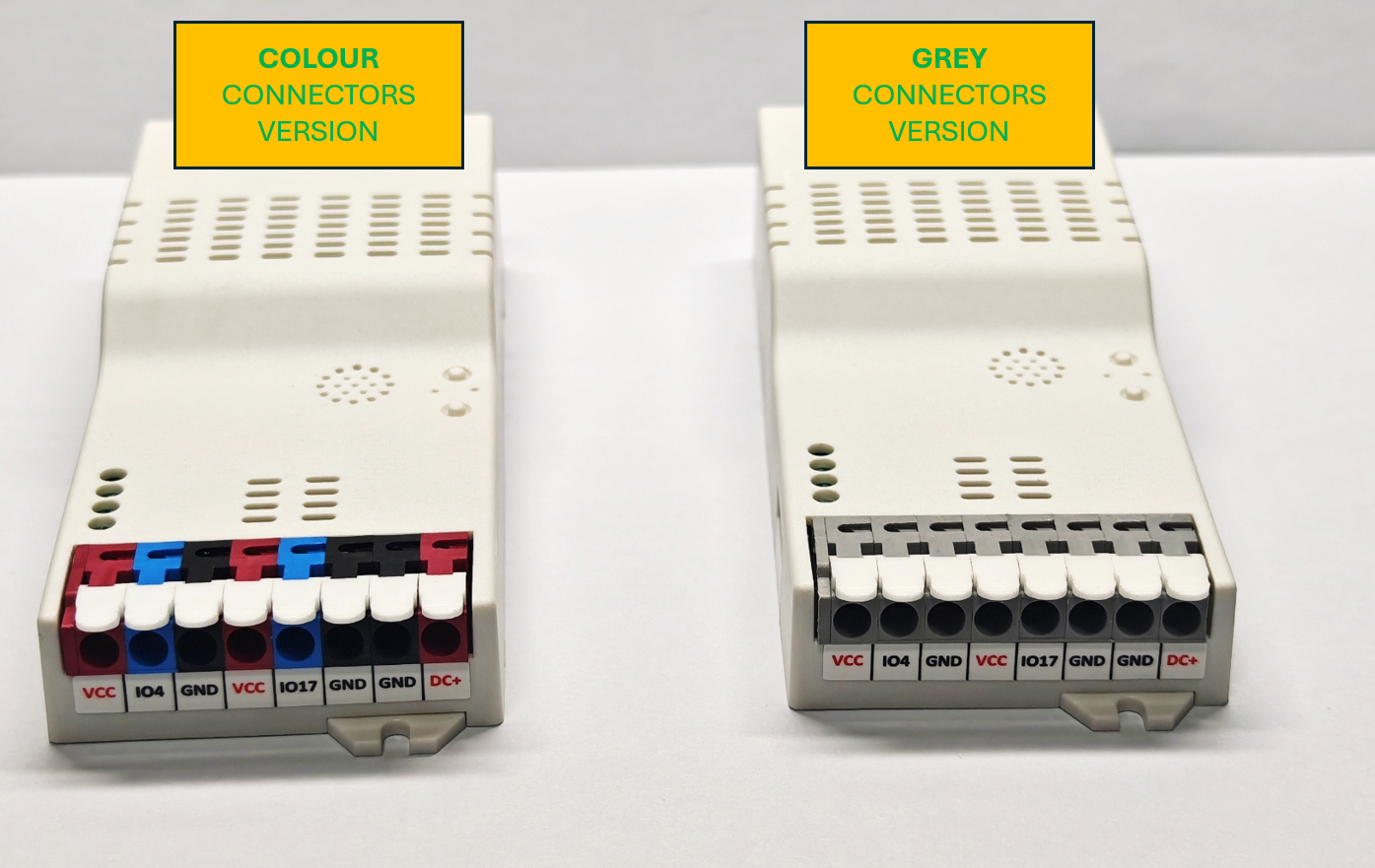

- Fast wire terminal – just one click – and your LED strip or power strip is connected, no screws.
- It can be powered by Type-C PD/QC (only with smart technology) – because the device has a switch and can choose either 5V or 12V! Yes, you can power a 12V LED strip via Type-C (requires PD / QC power supply). Cool, isn’t it?
- It can be powered by PoE. We recommend limiting to limit by 1.5-2A. Only 5V strip (WS2812, etc).
- Relay: It has a physical MOSFET relay (GPIO33). Also, you can use the available wire terminal to bypass the Relay.
- Has two outputs to Addressable LED strips (with level-shifters).
- Two buttons to control the device
- DIY screw terminal header
Modular Addressable LED Strip Controller – ESP32-based, WLED-compatible, Expandable
The A1-SLWF‑09 is a next-generation LED controller by SMLIGHT, built for ultimate flexibility and integration with modern smart home systems. Based on the powerful ESP32 platform and pre-flashed with WLED firmware, it controls addressable LED strips with advanced features and support for modular add-ons, including Ethernet, PoE, anda digital microphone.
🔧 Key Features
| Feature | Description |
|---|---|
| Modular Add‑on Support | Optional plug-in boards for Ethernet, PoE, and digital microphone – install only what you need. |
| ESP32 Power | Based on ESP32 SoC with 16 MB flash memory. |
| WLED Ready | Preinstalled WLED firmware for smooth setup, vibrant effects, and sound-reactive modes. |
| LED Compatibility | Supports WS2812B, SK6812, APA102, and other addressable strips (5V–24V). |
| Multi-Channel Control | Two hardware LED channels (expandable up to 6 via GPIO). |
| Smart Home Integration | Seamless connection to Home Assistant and other systems via Wi‑Fi or Ethernet with add-on. |
| Power Supply Options | USB-C with PD support, screw terminal (VIN), or optional PoE via add-on board. |
| Audio-Reactive Support | Optional ICS‑43432 I²S MEMS digital microphone via add-on enables synchronized music lighting. |
| Robust Connectivity | Optional Ethernet port (LAN8720) via add-on with hardware-level PHY and isolation. |
| Developer Friendly | UART auto-flash via USB-C, exposed GPIOs for expansion, labeled headers for all modules. |

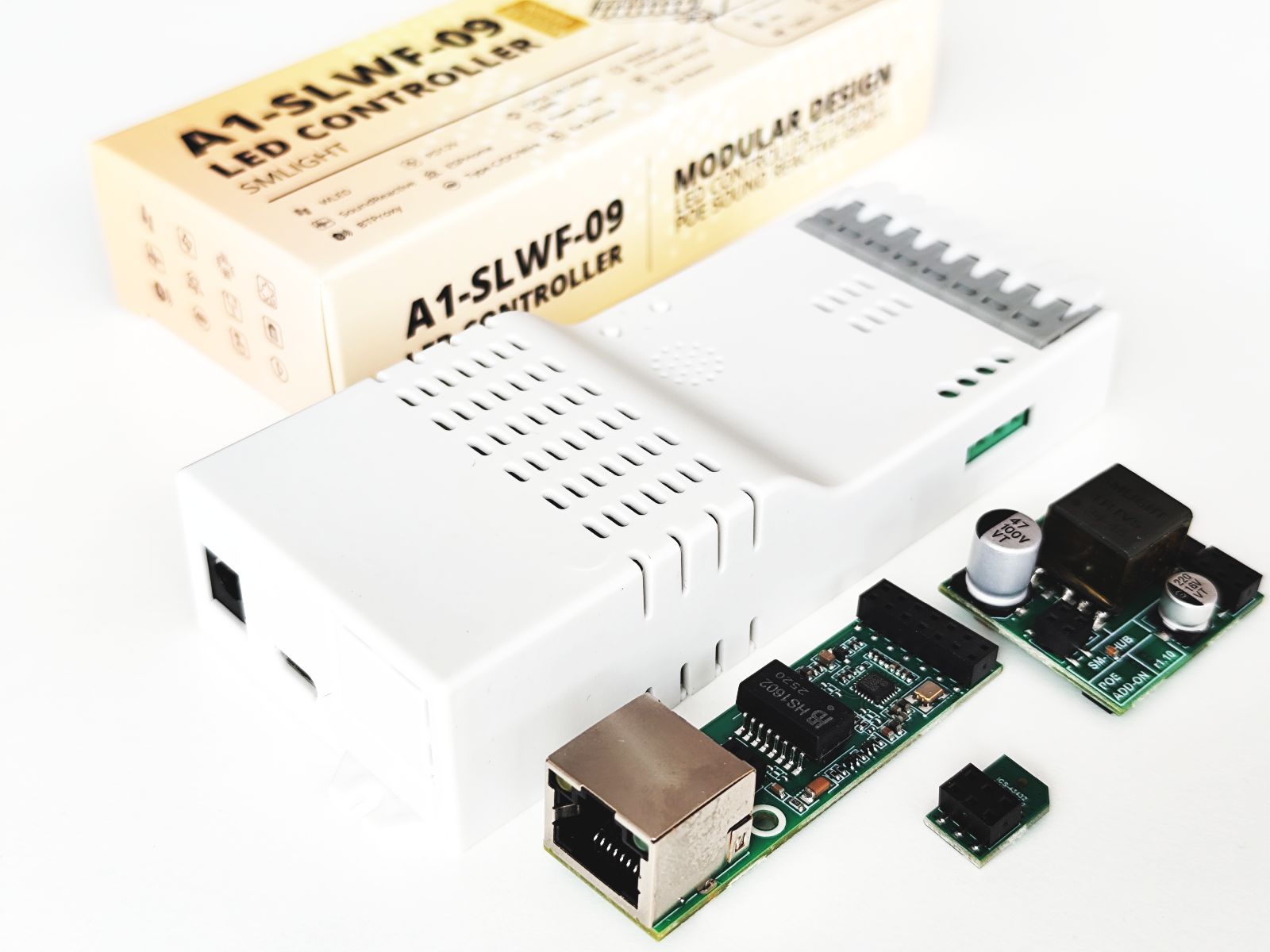

🧩 Modular Add-ons (Sold Separately)
| Add-on | Description |
|---|---|
| Ethernet Module | Adds 10/100 Mbps LAN via LAN8720 + magnetic isolation (RJ45). |
| PoE Module | IEEE 802.3af PoE support, supplies 5V 2A power to the board. |
| Microphone Module | High-fidelity ICS-43432 MEMS digital microphone with I²S output for WLED sound-reactive effects. |
Each module plugs into dedicated JST-style headers with keyed orientation for safety and ease.
🔌 Connectivity & Interfaces
-
Wi‑Fi 2.4 GHz (built-in)
-
Ethernet 10/100 Mbps via add-on
-
IR Receiver and Button support via DIY screw interface
-
USB-C with UART auto-programming
-
GPIO expansion for additional LED outputs, sensors, and DIY projects
📦 Physical Specs
| Parameter | Value |
|---|---|
| Dimensions | 57 × 30 × 23 mm |
| Voltage Input | 5V–24V DC (via VIN or USB-C) |
| LED Power Output | Directly powered from external power via MOSFET switch control |
| Case | Open-frame PCB or optional enclosure (coming soon) |
🧠 Ideal For
-
DIY LED projects
-
Music-reactive ambient lighting
-
Smart home automation
-
Wall panels, signage, and holiday decorations
-
Professional installations requiring Ethernet or PoE
🔄 Firmware & OTA
-
Default Firmware: WLED (pre-installed)
-
Compatible Alternatives: ESPHome, Tasmota, custom firmware
-
OTA Updates: Supported via WLED interface
A1-SLWF-09 MODULAR LED CONTROLLER – Preview POE powered + Ethernet + Mic
SUPPORTED MODES
WLED POWERED, PLUG-AND-PLAY
Pre-flashed and ready-to-use WLED controller. Just plug it in and start using WLED.
soundReactive WLED
Add-on digital microphone ICS-43434.
Ready to use.
Pre-configured for sound-reactive WLED.
Ethernet connection
With the Ethernet add-on, A1-SLWF-09 can be used as Ethernet based WLED controller!
PoE Powered
with PoE addon – can be PoE powered and work with 5V led strips. Addon can deliver 1.5-2A!
ESPHome support
Board supports ESPHome and has an onboard Microphone, IR receiver, and two screw-pad outputs – buid your own ESPHome.
Voice Assistant @ Home Assistant
You can use A1-SLWF-03 as a remote microphone for your Home Assistant – Voice Assistant feature.
DIY Mode
With tens available ESP32 pint, USB/UART on the board – start your own project using SLWF-03 ad a development board.
BTProxy for
Home Assistant
Expand your Home Assistant set-up with Bluetooth-to-WiFi bridge based on BTProxy.
BUILT-IN FEATURES
MICROPHONE
Mic add-on with best in class digital I2S microphone. Do not compomize on quality, choose only best ones.
2x BUTTONS
For itteraction with the users – you can use two buttons. Even more, it provides with feedback being connected to red LED.
DIY terminal
Expand functionality with DIY terminal. For example, you can connect external button, or IR remote control receiver etc..
USB/UART PROGRAMMER
Built-in USB/UART programmer lets you re-flash your device without any external equipment.
ESP32 AUTOBOOT
With ESP32 Autoboot features you can flash device without additional buttons, just plug the cable and start.
2 LEDS
LEDs provide the user with feedback and statuses. One is connected to the Sensor button, 2 others – free to use.
LOGIC LEVEL CONVERTER
For adressable LEDs Logic Level Converter helps to control the LEDs according to their required voltage.
ESP32 SoC
ESP32-D0WD-V3 is the most powerfull SoC wthin the ESP32 series. You deserves the best.

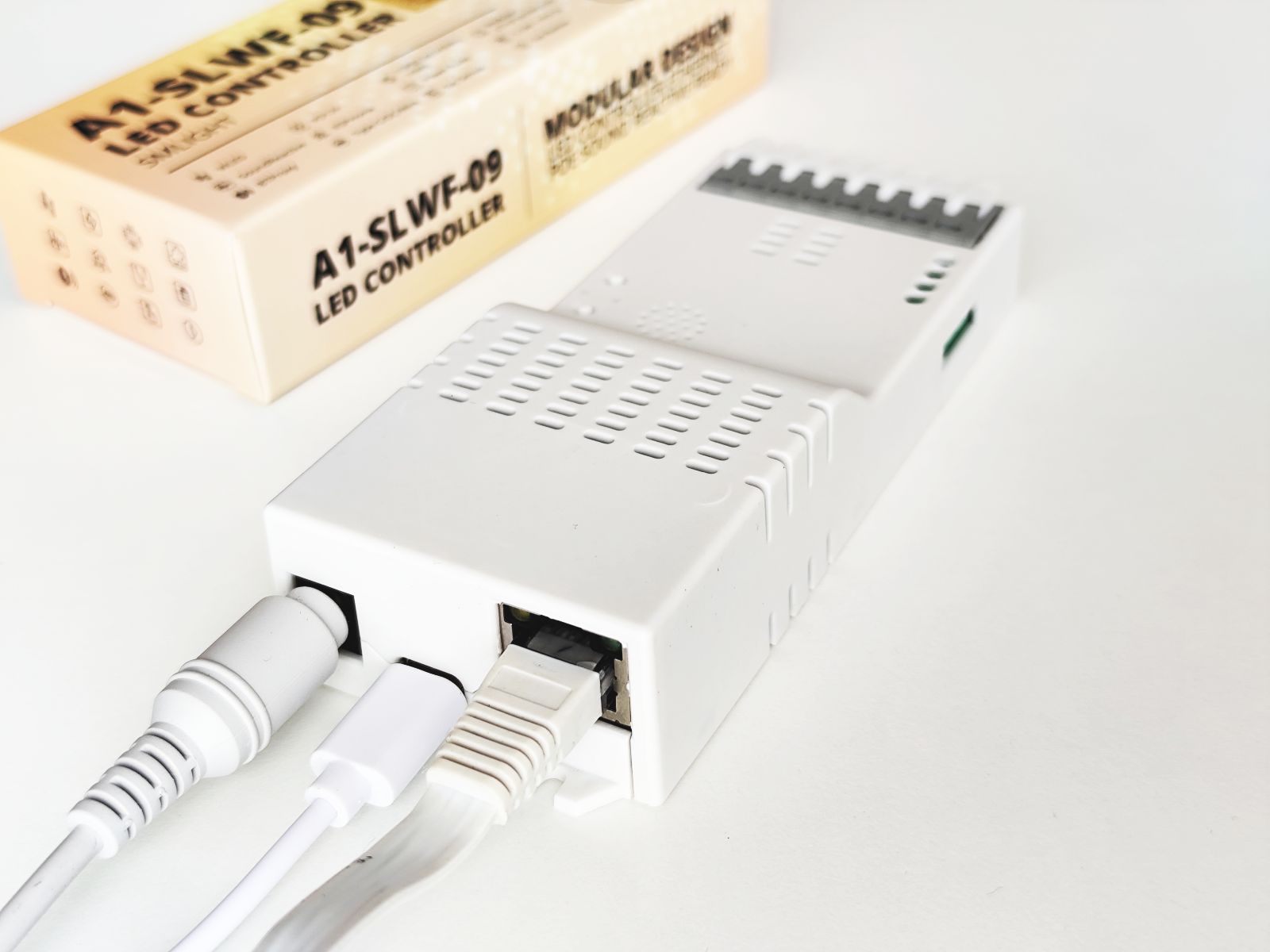

POWERING

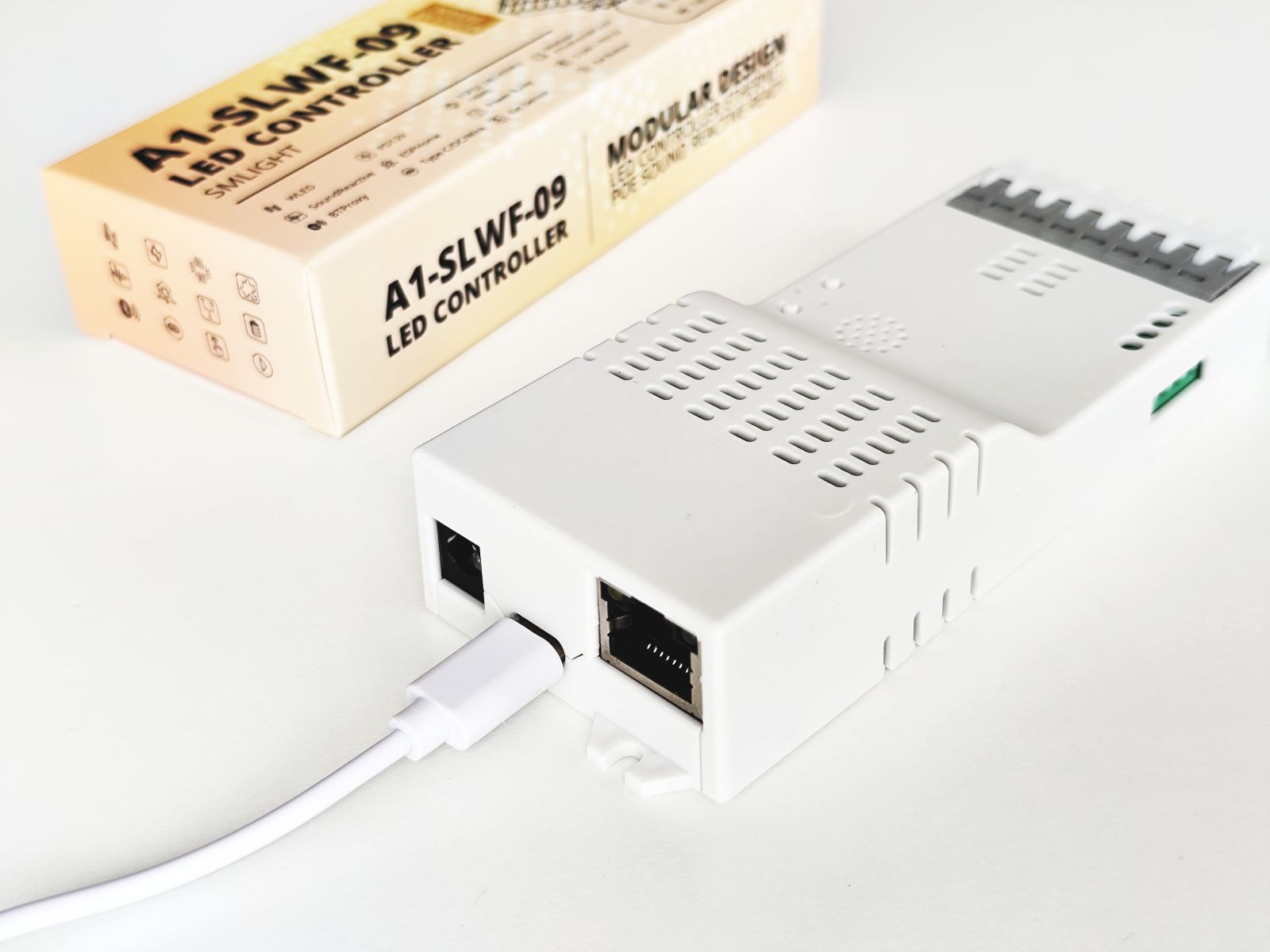

TYPE-C POWER SUPPORT
Among different source of powering, SLWF-09 support widely used type-C plug (with PD or QC technology). Moreover, you can choose either 5V or 12V.

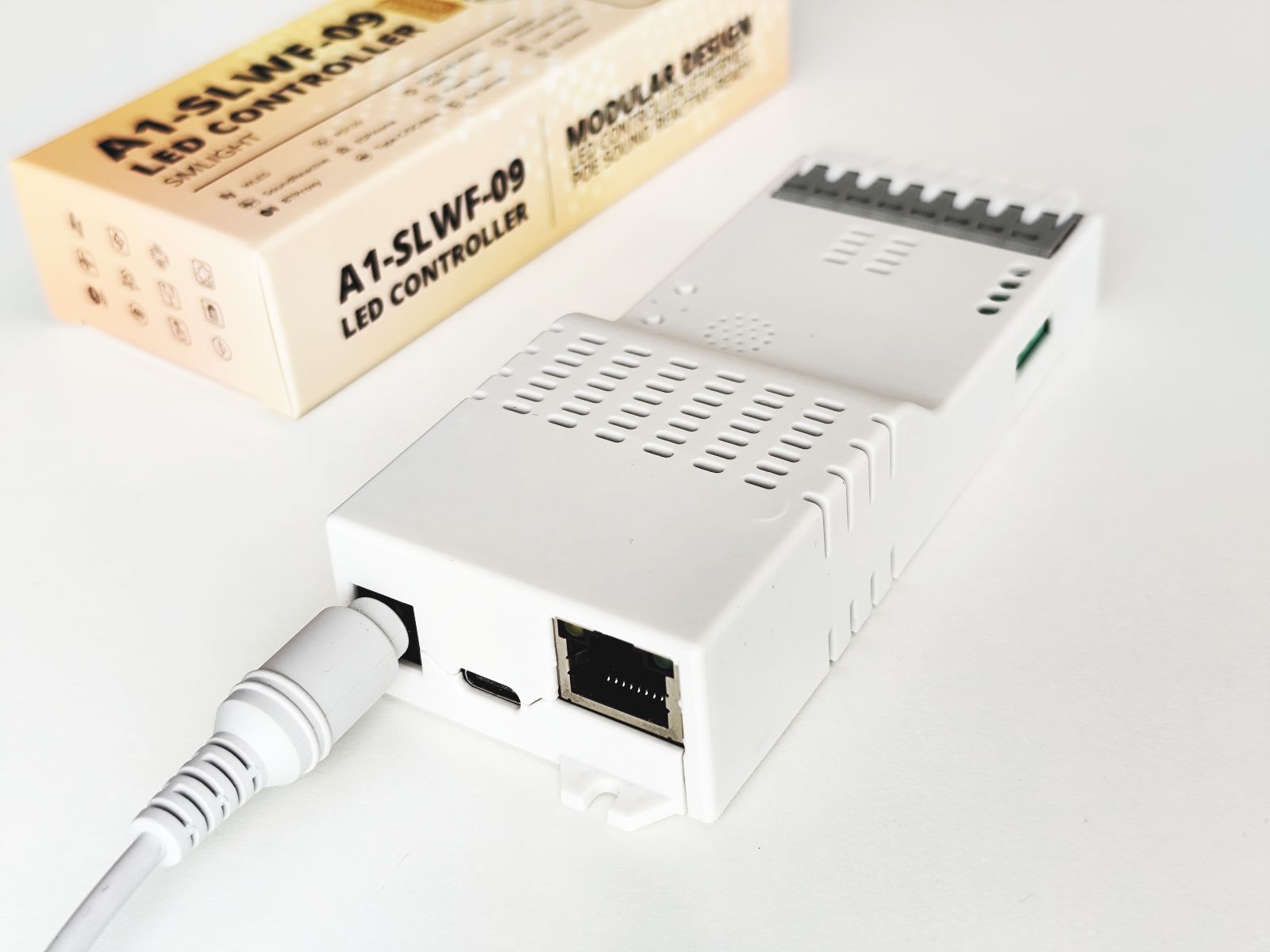

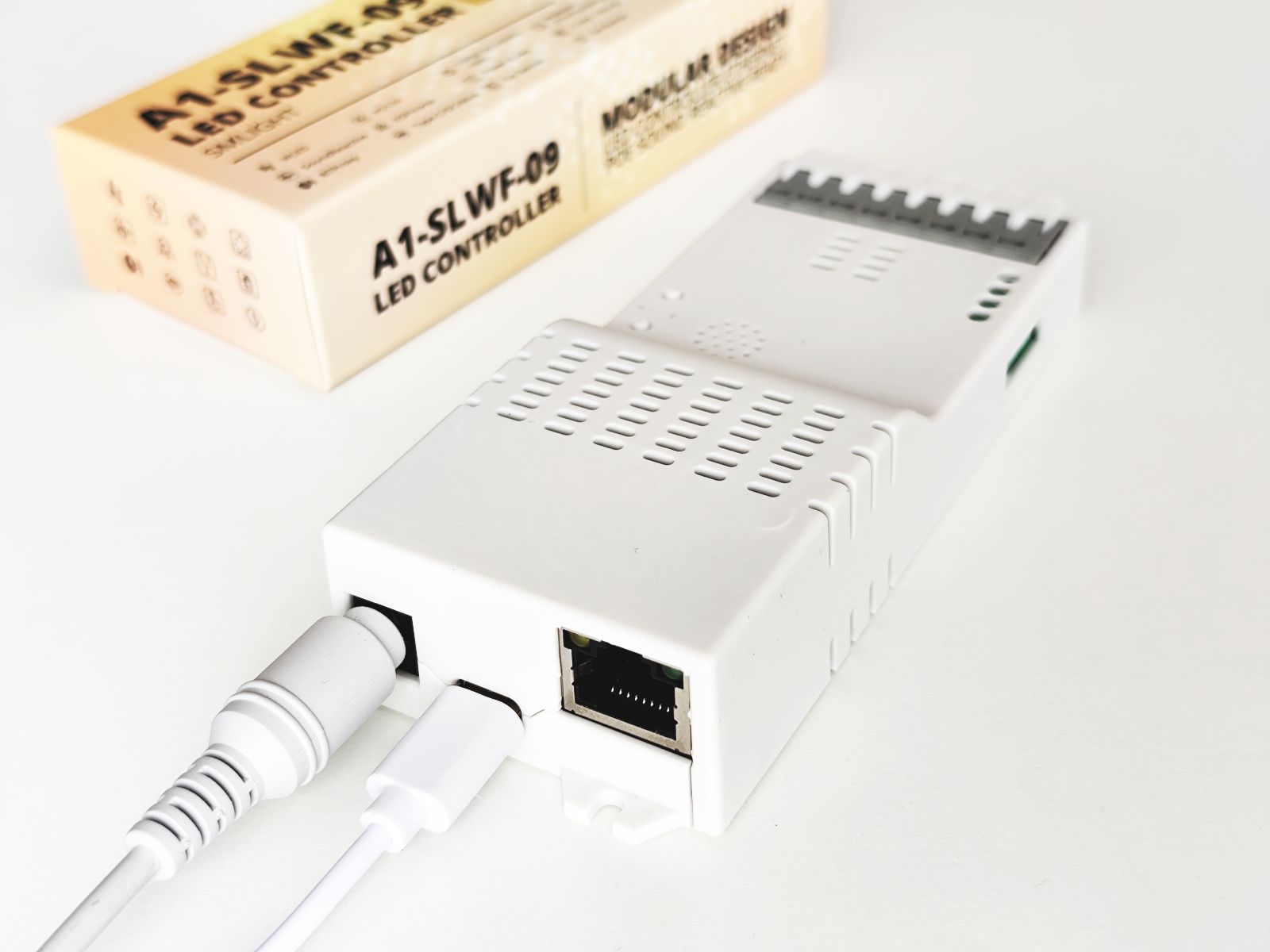

DC-PLUG IN
Apart from th type-C, you can power your device via DC plug 5.5×2.1. Convenient and universal (unplug Type-C while powering over DC). 5 – 24V power supplies support.

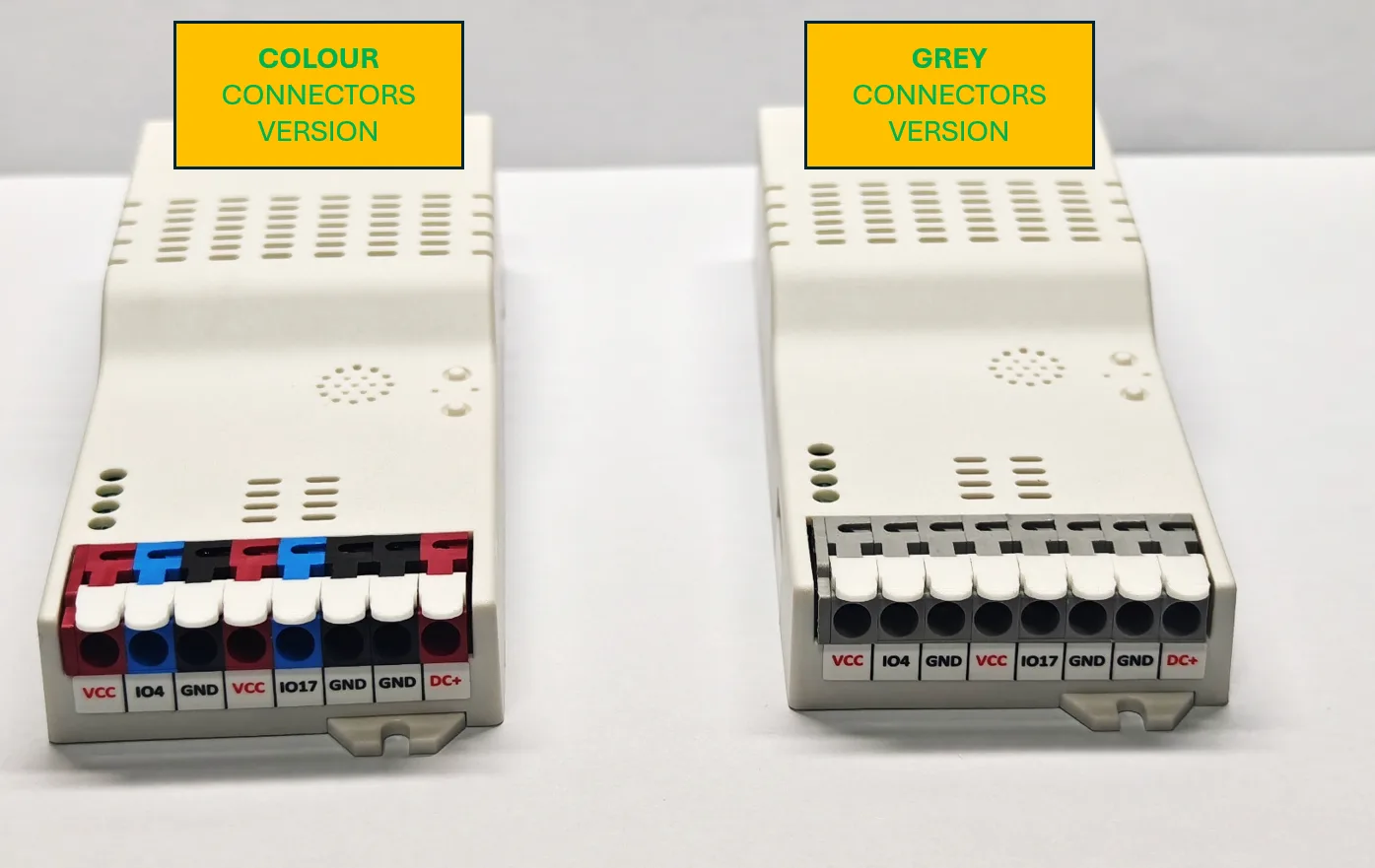

FAST WIRE TERMINAL
Do you have just + and – wires? No problem, you can power by put the wires directly to the fast wire terminal (unplug Type-C before doing that). 5 – 24V power supplies support.
PoE Powered
with PoE addon – can be PoE powered and work with 5V led strips. Addon can deliver 1.5-2A!
OTHER
TINY DESIGN
The SLWF-09 is as small as 57x30x23 mm. Very tiny and compact.
EASY TO PLACE
2x two-sided adhesive sticks are in the package, can be easely attached to any surface. Also has plces for screws.
WELL DOCUMENTED
SLWF-09 is powered by WLED (SW) and ESP32 (HW). Both systems are well documented with an exhaustive community.
UKRAINIAN QUALITY GUARANTEED
SLWF-09 is engineered from a scratch in Ukraine.
