✅ SLZB-MRW10 Intro

🚀 SLZB-MRW10 – Multiprotocol Smart Home Adapter (Testing Samples)

Call for Testers
We are currently distributing SLZB-MRW10 units for testing purposes. These devices have successfully completed internal testing and demonstrate stable performance across all supported networks, including Zigbee, Thread/Matter, Wi-Fi, and Z-Wave (non-certified).

After this testing phase, we plan to apply for full Z-Wave certification.

These adapters are distributed to testers strictly for evaluation and testing only. The current price reflects testing program participation, and the expected retail price (RRP) is about $75.

Overview

SLZB-MRW10 is a compact, powerful multiprotocol adapter, integrating:

  • EFR32ZG23 for non-Z-Wave certified testing (Z-Wave 800 series)

  • CC2674P10 for Zigbee 3.0, Thread, and Matter over Thread (up to 400 end devices)
  • ESP32 for Wi-Fi and Bluetooth LE

Designed for integration into smart home hubs, bridges, and custom automation platforms, the device provides a reliable multiprotocol foundation for next-generation development.

⚠️ Important Notice:
Z-Wave support in this device is non-certified and is included strictly for evaluation and testing purposes. These are not certified, not for commercial deployment, and are clearly labeled as non-Z-Wave certified samples.

SLZB-MR1

WHERE TO SUBSCRIBE FOR TESTING AND GET SAMPLES:

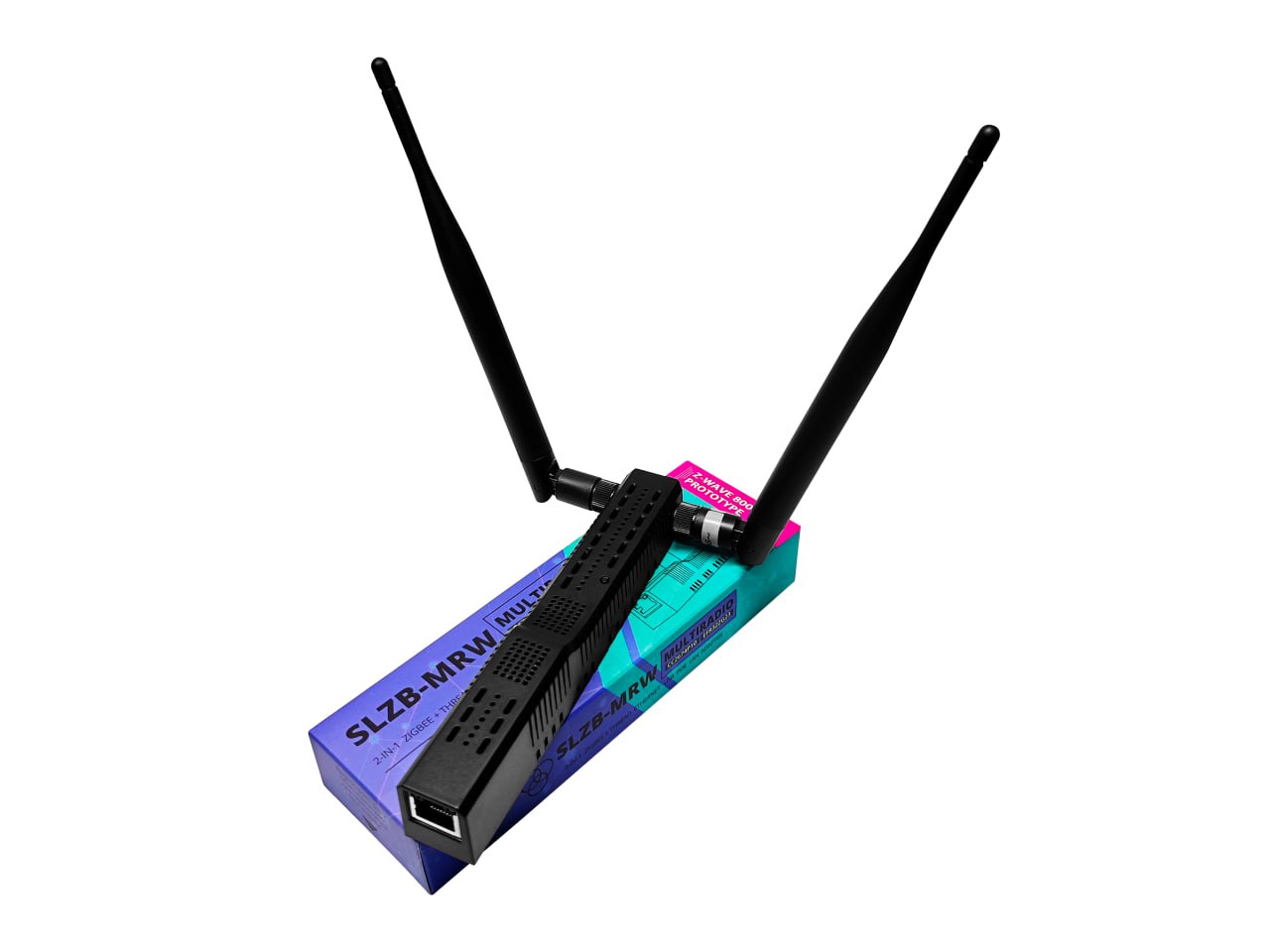

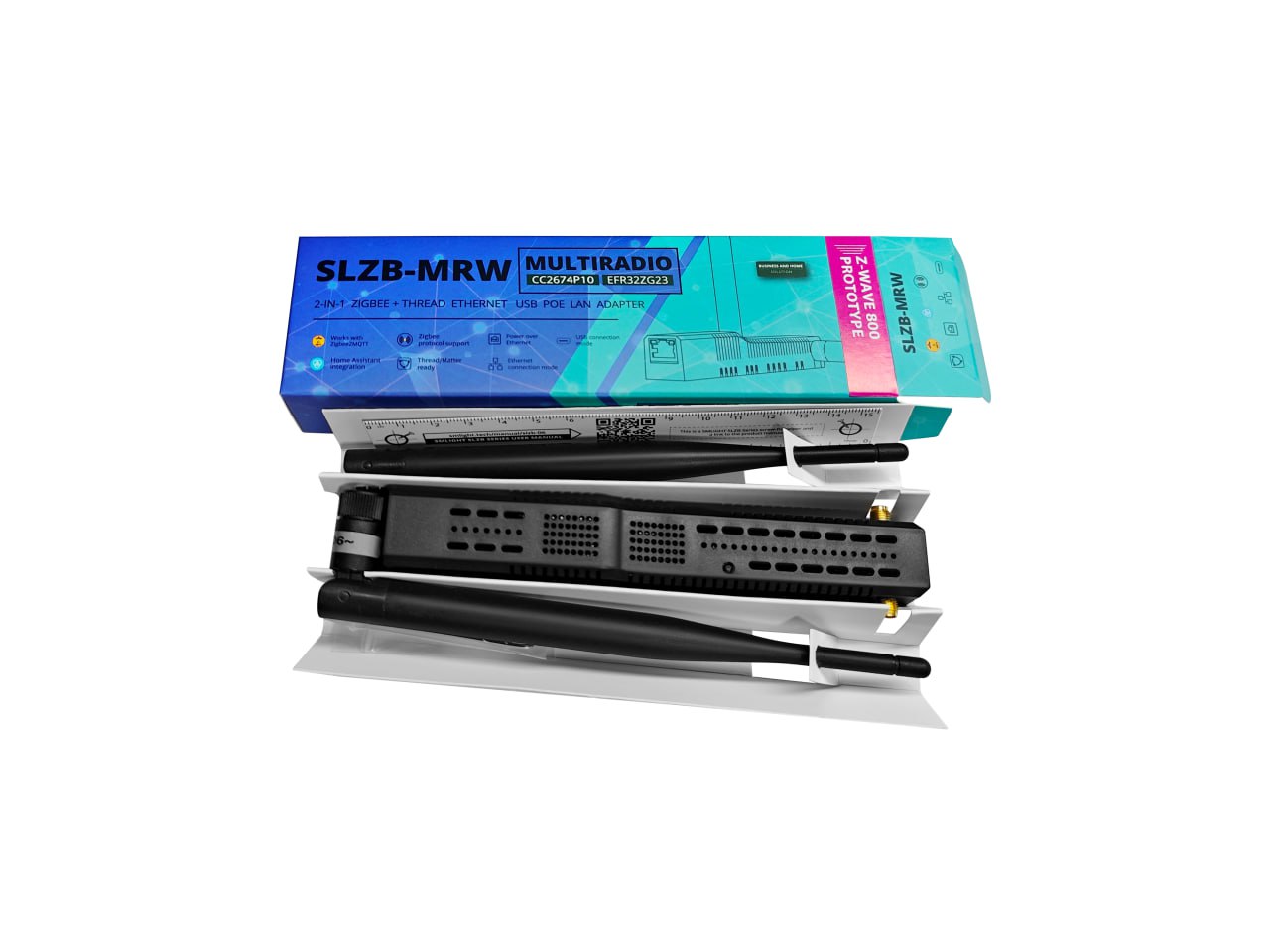

PHOTOS

Technical Specifications – SLZB-MRW10

Radio Chips:

  • Texas Instruments CC2674P10
    • Zigbee 3.0 support (Zigbee2MQTT & ZHA compatible).
    • Thread (Matter-over-Thread) support (Open Thread Border Router) .
    • Ideal for Zigbee networks, works perfect also with Thread networks.
    • +20 dBm TX power with built-in PA.
  • Silicon Labs EFR32ZG23
    • Z-Wave 800 support (+ Long Range). ⚠️ Important Notice: Z-Wave support in this device is non-certified and is included strictly for evaluation and testing purposes. These are clearly labeled as non-Z-Wave certified samples.

Supported Protocols:

    • Zigbee 3.0 (Zigbee2MQTT, ZHA).
    • Thread (Matter-over-Thread).
    • Z-Wave (not certified, for evaluation purposes only)
    • Supports simultaneous or switchable operation for multiradio environments.
    • Wi-Fi and Bluetooth.



Connectivity:

  • USB-C for data and power
  • Ethernet connection



Firmware:

  • Radio firmware support
      • Compatible with TI Z-Stack (for CC2674P10)
      • Compatible with SL Ember/EZSP stack (for EFR32MG24).
  • Radio firmware Updating via web-interface
  • SLZB-OS
  • Compatible with SLZB-OS versions 2.8.7 and up.
  • SLZB-OS supported functionality:
      • VPN, 20+ languages, Scripts support, Network settings, Security, Dashboard, zHub mode, mode switcher, OTA firmware updates etc.

Antenna:

  • Dual external antenna SMA female connectors (one for each radio SoC)
  • PCB antenna for Wi-Fi and Bluetooth.
  • 2x pre-packed high-gain
  • – 2.4 GHz antennas for Zigbee/Thread
  • – 900Mhz antenna for Z-Wave (not certified), for regions US, EU and NAZ.



Power Supply:

  • PoE powered, POE 48V supported
  • Powered via USB-C (5V DC)
  • Low power consumption up to 1.5W (if both radio SoCs are running)

Enclosure:

  • Compact, durable ABS case with ventilation
  • DIN rail and wall-mount compatible (3D models)
  • Easy sticking with two-sided adhesive tapes
  • Easy mounting with screws with screw set (screws, screw driver, ruler) included.



LED Indicators and peripheral:

  • Independent status LEDs for each radio (6 service LEDs in total: 2 LEDs for Core SoC, 2 LEDs for CC2674P10 SoC, 2 LEDs for EFR32ZG23 SoC,)
  • Multibutton: supports many functions (mode switch, reset etc).
