Recommended for ZHA integration. Extensive real-world testing with ZHA has been successfully completed. Testing with Zigbee2MQTT is ongoing, with initial results being positive (as of 28 June 2025).
PRIVATE INSTALLATION EXAMPLES
BUSINESS INSTALLATION EXAMPLES
WHAT MAKES SMLIGT SLZB-06Mg26 THE BEST OPTION TO USE AS YOUR ZIGBEE ADAPTER?
| SMLIGHT SLZB-06Mg26 |
Other POE adapters | |
 |
 |
|
| Supports Zigbee to Ethernet? | Yes | Yes |
| Change Ethernet/USB working mode through firmware distantly rather than by mechanical switches? | Yes | No |
| Based on powerful EFR32MG26 Zigbee chip? | Yes | No |
| Is the antenna +5dB included in the package? | Yes | No / Yes |
| Based on UART/USB SoC CP2102 that supports up to 921600 bps speed? | Yes | No |
| Do not need to change the physical switch between POE and USB powering? | Yes | No |
| Has optoelectronic isolation between Ethernet and USB so you can securely connect both RJ45 and type-C at the same time? | Yes | No |
| ESP32 and EFR32MG26 integrated as chips on a single board to improve the system’s stability rather as a combination of modules on the boards? | Yes | No |
| Tiny thin design (<22mm wide) to fit any small places? | Yes | No |
| Peripheral based on ESP32? | Yes | Yes |
| Supports ESP32 autoboot mode for flashing over Type-C? | Yes | No |
Technical Specifications – SLZB-06Mg26
Radio Chips:
- Silicon Labs EFR32MG26!!!
-
- Zigbee 3.0 support (Zigbee2MQTT & ZHA compatible).
- Thread (Matter-over-Thread) support (Open Thread Border Router).
- +20 dBm TX power.
Supported Protocols:
-
- Zigbee 3.0 (Zigbee2MQTT, ZHA).
- Thread (Matter-over-Thread).
- Supports simultaneous or switchable operation for multiradio environments.
- Wi-Fi.
Connectivity:
- USB-C for data and power
- Ethernet connection
Firmware:
- Radio firmware support
-
- Compatible with SL Ember/EZSP stack (for EFR32MG26).
-
- Radio firmware Updating via web-interface
- SLZB-OS
- Compatible with SLZB-OS versions 2.9.4 and up.
- SLZB-OS supported functionality:
-
- VPN, 20+ languages, Scripts support, Network settings, Security, Dashboard, zHub mode, mode switcher, OTA firmware updates etc.
-
Antenna:
- Dual external antenna SMA female connectors (one for each radio SoC)
- PCB antenna for Wi-Fi and Bluetooth.
- 2x pre-packed high-gain 2.4 GHz antennas included
Power Supply:
- PoE powered, POE 48V supported
- Powered via USB-C (5V DC)
- Low power consumption up to 1.5W (if both radio SoCs are running)
Enclosure:
- Compact, durable ABS case with ventilation
- DIN rail and wall-mount compatible (3D models)
- Easy sticking with two-sided adhesive tapes
- Easy mounting with screws with screw set (screws, screw driver, ruler) included.
LED Indicators and peripheral:
- Independent status LEDs for each radio (4 service LEDs in total: 2 LEDs for Core SoC, 2 LEDs for EFR32MG26 SoC,)
- Multibutton: supports many functions (mode switch, reset etc).
FUNCTIONS
NEW SoC MG26

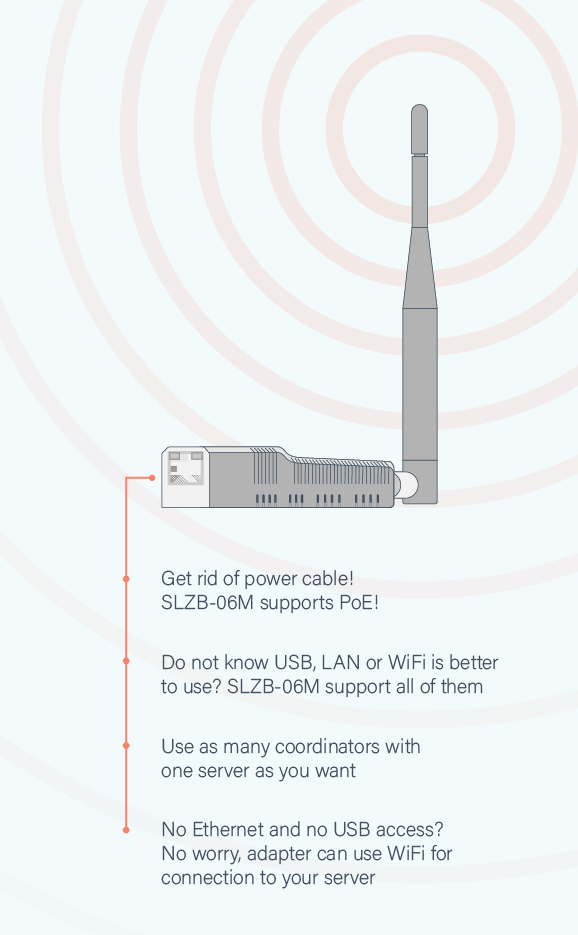

Use SLZB-06Mg26 as Zigbee 3.0 to LAN, WiFi or USB. Forget about separate devices. Change mode online or via button
PoE power
You can power your SLZB-06Mg26 device either through PoE or Type-C. PoE 802.3af standard is supported
+20dB +5dB
Zigbee 3.0 SLZB-06Mg26 adapter has +20dB amplifier on board & +5dB antenna. Cover your farthest locations
Coordinator or Router
Supports both Zigbee 3.0 modes – Coordinator or Router. Just flash over the web interface appropriate firmware
FIRMWARE
PRE-FLASHED
Just plug-and-play. You will get your SLZB-06Mg26 pre-flashed and ready to use
OPEN-SOURCE
For security geeks there is an open source firmware version that covers core basic functionality
ADJUSTABLE
Full control of your device. Need to change mode from LAN to USB? Just one click. Want to turn off Power LED? One click!i
SECURE
Control access to the Zigbee 3.0 SLZB-06Mg26 adapter’s settings through secure login and password

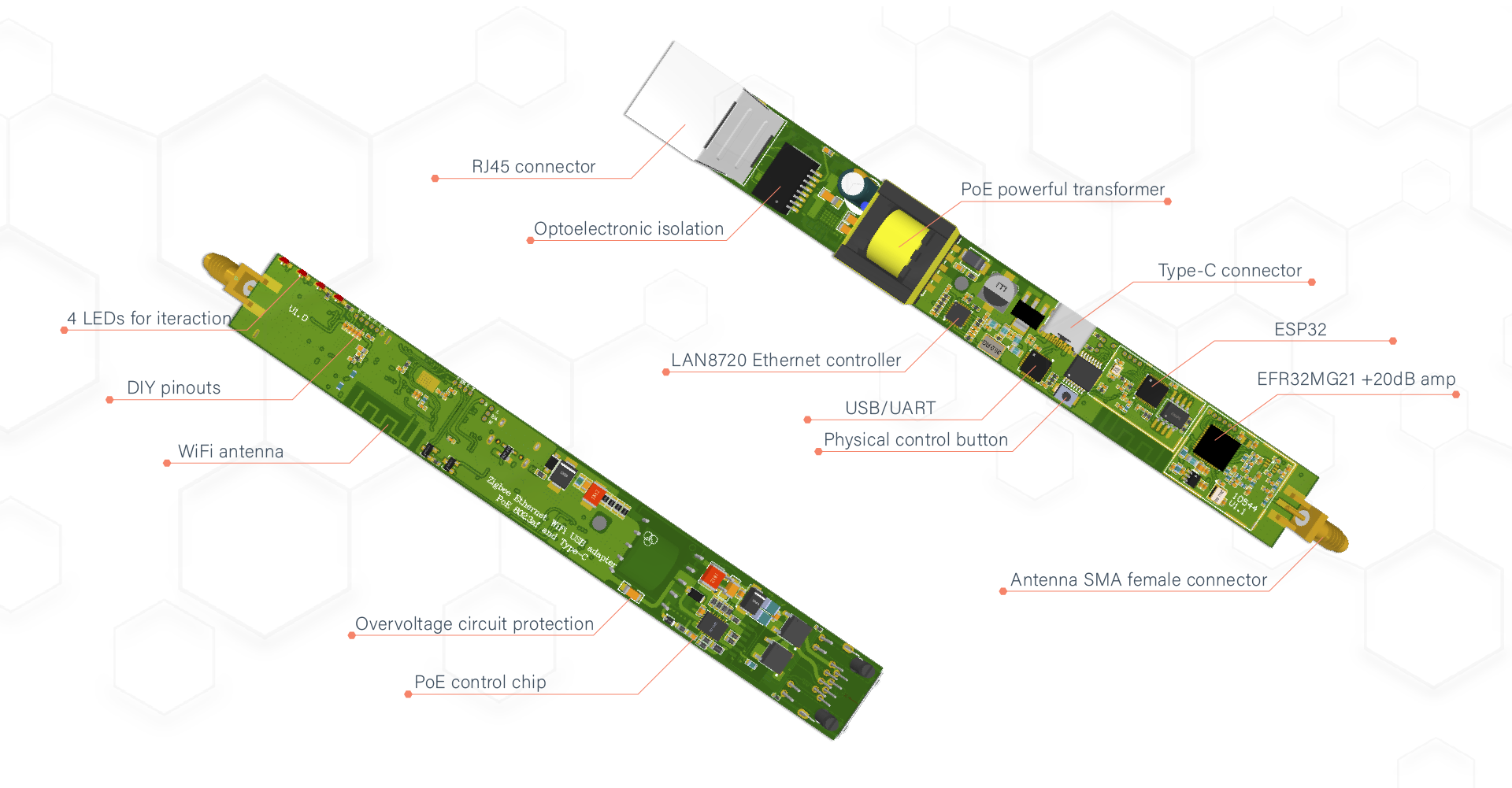

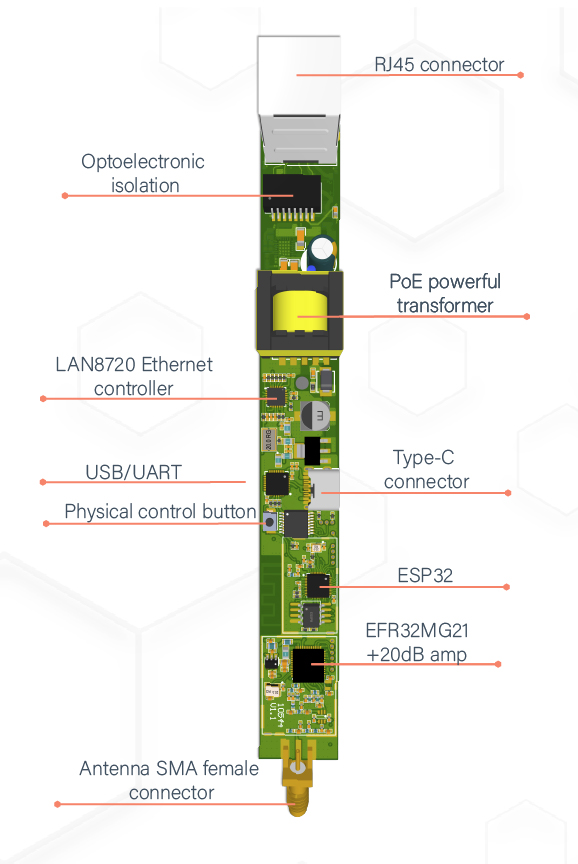

CHIPSETS AND TECHS
EFR32MG26
Zigbee 3.0 SoC is based on the powerful chip EFR32MG26 from Silicon Labs, reliability confirmed by thousands of users
ESP32
Powerful ESP32 chip makes control over all the functions of the device
LAN8720
Reliable Ethernet SoC from Microchip takes care on stable Ethernet connection
CP2102
Best in class USB/UART SoC converter. Do not compromise on speed and quality
UPDATES
REMOTE ZIGBEE UPD
The only Zigbee coordinator with the option to update Zigbee chip over web-interface just with one click!
REMOTE ESP32 UPD
ESP firmware could be updated distantly. Full control wherever you are!
ESP32 Autoboot
SLZB-06Mg26 features auto boot mode for ESP32. If you want to flash over USB – just plug-and-do!
DIY PINOUTS
SLZB-06Mg26 is a DIY enthusiasts friendly: it contains pinouts for both ESP32 and EFR32MG26 chips
USER FRIENDLY
EASY TO PLACE
Want to install it on the wall or under the table? Use doulbe sided adhesive tape or screws, SLZB-06Mg26 fits both!
NEWBY? MANUAL!
Do not know how to start? No worries, exhaustive manual is included!
POWERFUL ANTENNA
Need co cover with Zigbee network big area? No worries, powerful antenna is included!
TINY DESIGN
Now you can put your adapter wherever you want! SLZB-06Mg26 is a small and tiny!
OTHER
4X LEDS
Do you like responses from your devices with LED? SLZB-06Mg26 has 4 LEDs for intercation with the users!
BUTTON
Control device mode and other functions through physical button.
ROTATABLE ANTENNA
Rotatable in 3 dimensions antenna secures best positions for the best signal
MADE IN UKRAINE
SLZB-06M designed, developed and tested in Ukraine. Ukrainian quality guaranteed.
SMLIGHT SLZB-06Mg24 SPECIFICATIONS
| SLZB-06Mg26 SPECIFICATIONS | |
| Main Zigbee 3.0 chip | EFR32MG26 Silicon Labs |
| Main control chip | ESP32 Espressif |
| USB/UART converter | CP2102 |
| Ethernet SoC | LAN8720 |
| Zigbee SoC output gain | +20dB |
| Additional gain antenna | +5dB |
| Ethernet support | Yes |
| WiFi support | Yes |
| PoE support | Yes |
| PoE standard supported | IEEE 802.3af (15W) |
| USB Type-C control | Yes |
| ESP32 Flasher integrated | Yes, based on CP2102 |
| ESP32 Autoboot | Yes, through DTR / RTS |
| Pre-flashed | Yes, Zigbee and ESP |
| Zigbee 3.0 Coordinator mode | Yes |
| Zigbee 3.0 Router mode | Yes |
| Zigbee to Ethernet | Yes |
| Zigbee to USB | Yes |
| Zigbee2MQTT support | Yes |
| ZHA support | Yes |
| Tiny design | Yes, 160x22x24mm |
| Operating environment | +5 – +35 C |
SMLIGHT SLZB-06Mg26 FREQUENTY ASKED QUESTIONS (FAQ)
Does SLZB-06Mg26 works with Home Assistant out of the box?
Yes, it does. Just plug in SLZB-06M into your LAN Ethernet or USB, and that is it. SLZB-06Mg26 is pre-flashed and ready to use.
Can I set up multiple SLZB-06Mg26 coodinators with one Home Assistant?
Yes, you can. You can set up as many SLZB-06Mg26 coordinators as you want with one Home Assistant. For that, you just need to run a separate instance of Zigbee2MQTT for each coordinator. We have now received feedback from our lovely Customers about using 6 items with one Home Assistant. Please also note that you can connect to devices that are outside your LAN network, e.g., somewhere in another location with access to the internet. More details can be found in this Article of the official manual.

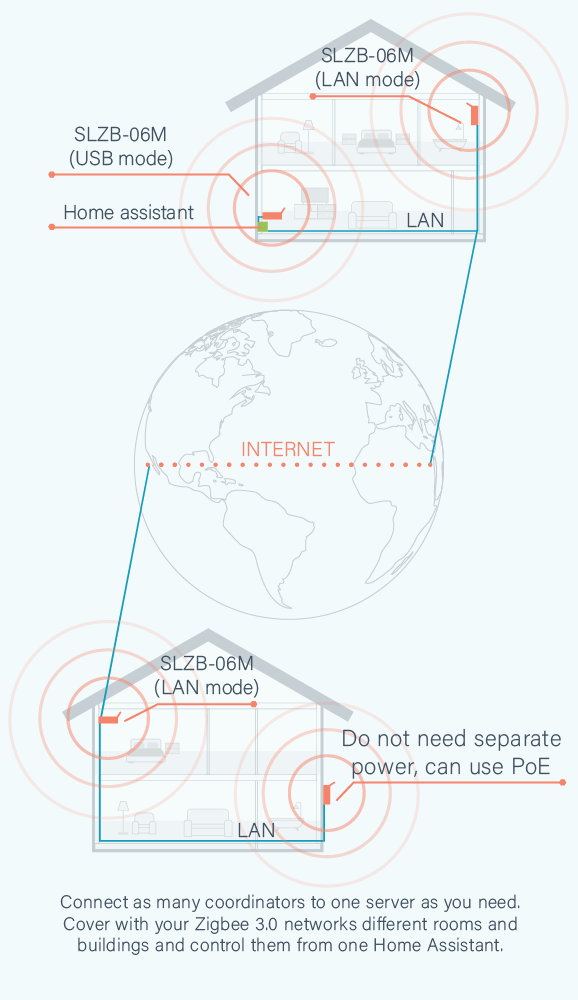

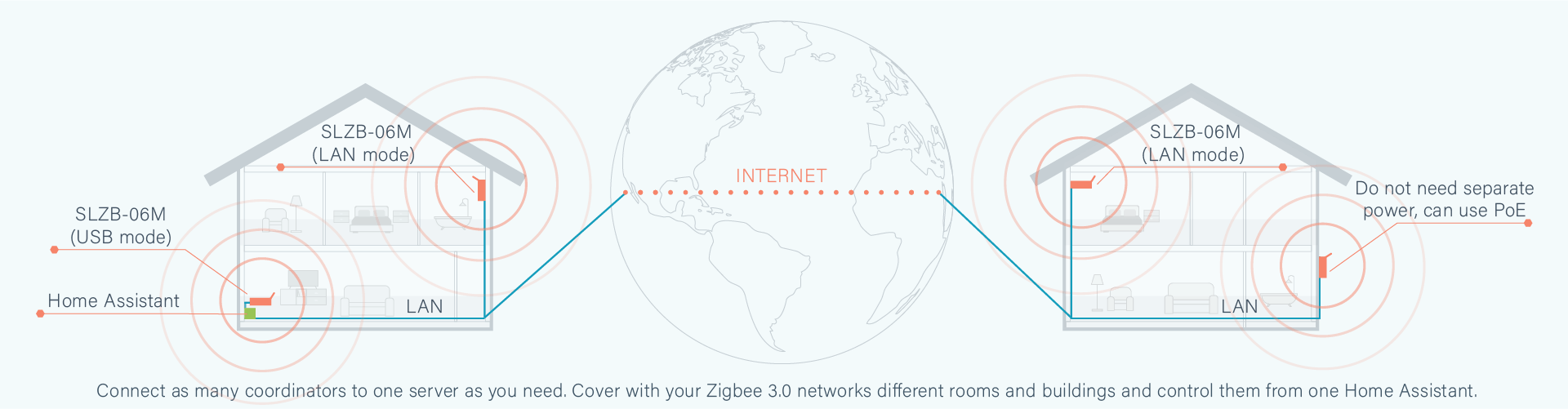

Overall system architecture with multiple adapters looks like this:
How to select mode USB/Ethernet? Any physical switches?
The device can be switched between USB or Ethernet either through a web-interface or by button. Just short press – and the work mode changed. Switching by web interface allows changing the work mode distantly.
Do I need to change powering either from POE or USB? Any switch?
Oh no. You do not need to think about tit. No switches. Just plug in POE or type-C or both – and the device works. It distinguishes power sources and acts correspondingly.
Can I update firmware distantly, without physical access to the SLZB-06Mg26
Yes, you can. Both main chips used in SLZB-06Mg26 (EFR32MG26 and ESP32) can be updated distantly from the other global point. That makes the device suitable for installation in rare-visited locations or installation places.
Does it supports POE powering?
Yes, it does. The device support POE standard IEEE 802.3af. That is the “basic” POE widely used standard. Just plug and use; you do not need any other additional power cables and plugs.
What is ESP32 Autoboot?
That is for “Pro” users who want to flash SLZB-06Mg26 with the type-C connection. ESP32 Autoboot means that the device contains a built-in programmer and schematic that allows flashing ESP32 without any additional activities: you do not need to press buttons to make ESP32 in flash mode, and you do not need to plug in additional programmers. The only thing you need – just to plug in type-C and start flashing. Easy.
Can I connect to type-C and RJ45 at the same time? Optoelectronic isolation at place?
Yes. The device contains optoelectronic isolation between USB and Ethernet parts. So you can plug in SLZB-06Mg26 to both RJ45 and type-C at the same time.
When close to ear, I hear little noise from the PoE transformer. Is it Ok?
The enclosure of the device contains vent holes, and when close to the ears, you can hear little noise from the POE transformer. The normal is if you can’t hear it more than 50 centimeters from the device.
Can it work as Zigbee-to-WiFi adapter?
Yes, in addition to Zigbee-to-Ethernet/POE and Zigbee-to-USB, SLZB-06Mg26 can works in Zigbee-to-WiFi mode, more details here: https://www.youtube.com/watch?v=ps-x_-CQXp0
