SMLIGHT SLZB-06p7 – Important Product Announcement (for orders shipped in Feb’24)

To Our Valued Customers,

Some Customers experiance issues with pairing Zigbee end devices on SLZB-06p7 Zigbee coordinators. This is the case for coordinators shipped in February.

The root of this issue is improper Zigbee firmware flshed to the device on production (Zigbee2MQTT and ZHA starts, some devices connect, but for example end-zigbee devices based on cc2530 SoC does not connect). To solve this issue, you need to update Zigbee firmware once following these steps –  link to the solving documentation. (we are working also on web-update for this particular issues so users will be able to make update in one click).
We encourage you to reach out to our support by following this link to support in case of any questions or if you are not able to follow the manual

We sincerely apologize for any inconvenience this may have caused. Thank you for your understanding and continued trust in SMLIGHT.

Sincerely,
SMLIGHT team
Kyiv, Ukraine, 02 March 2024

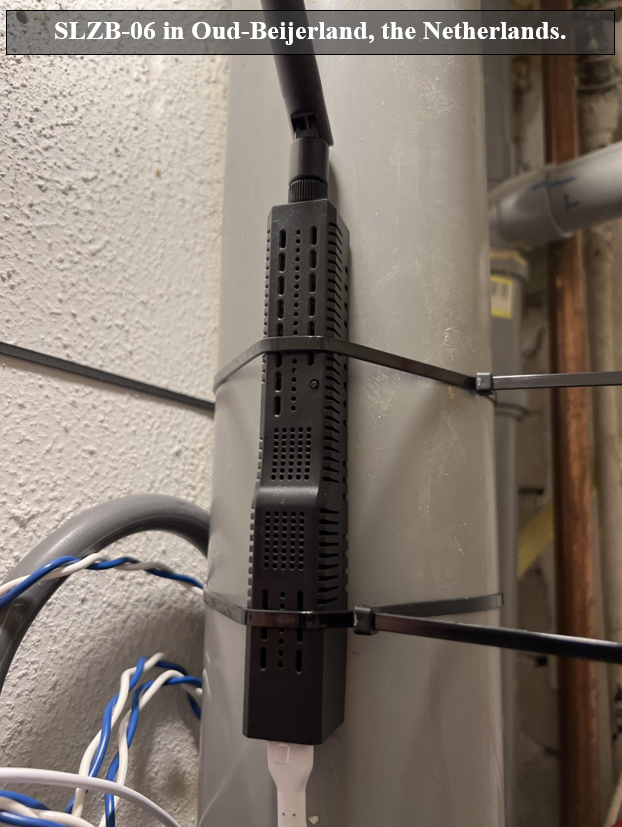

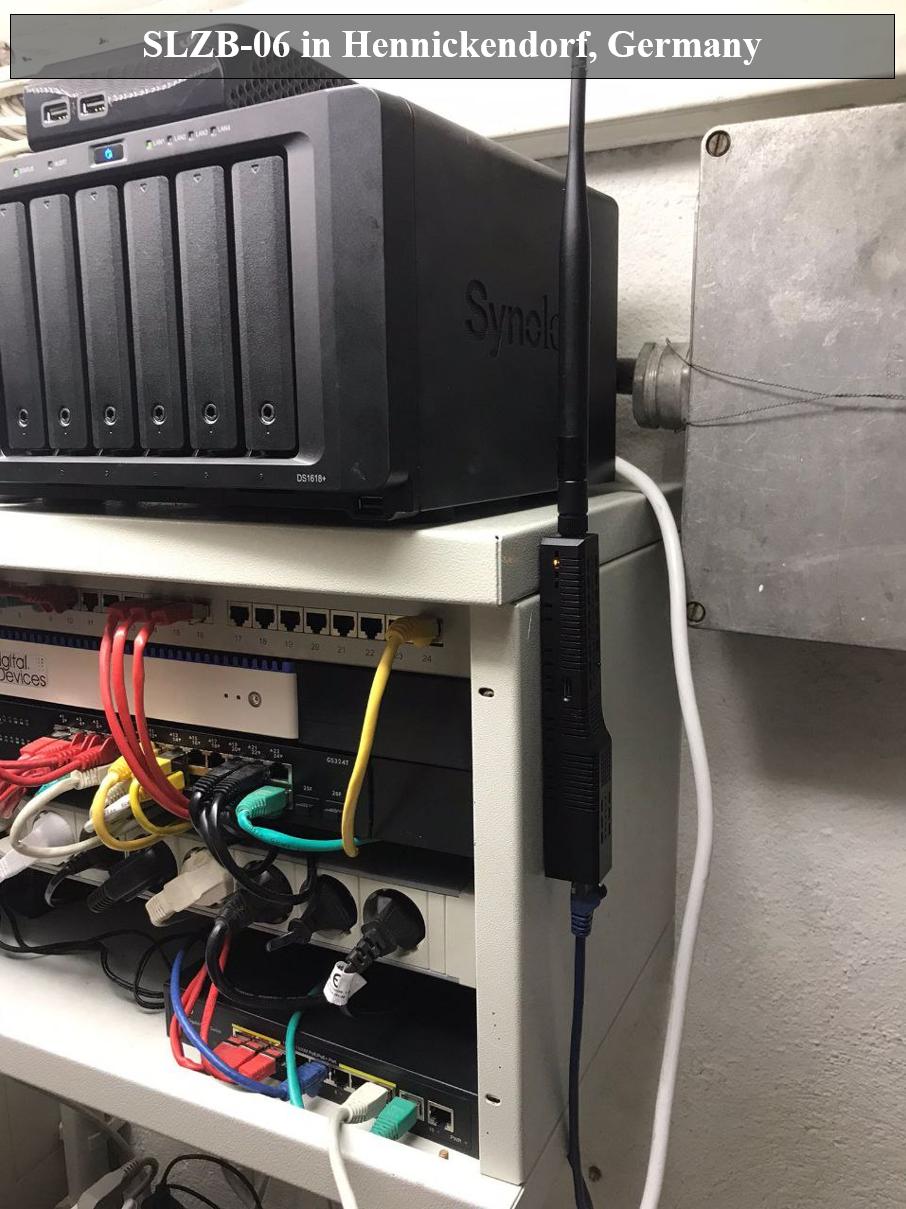

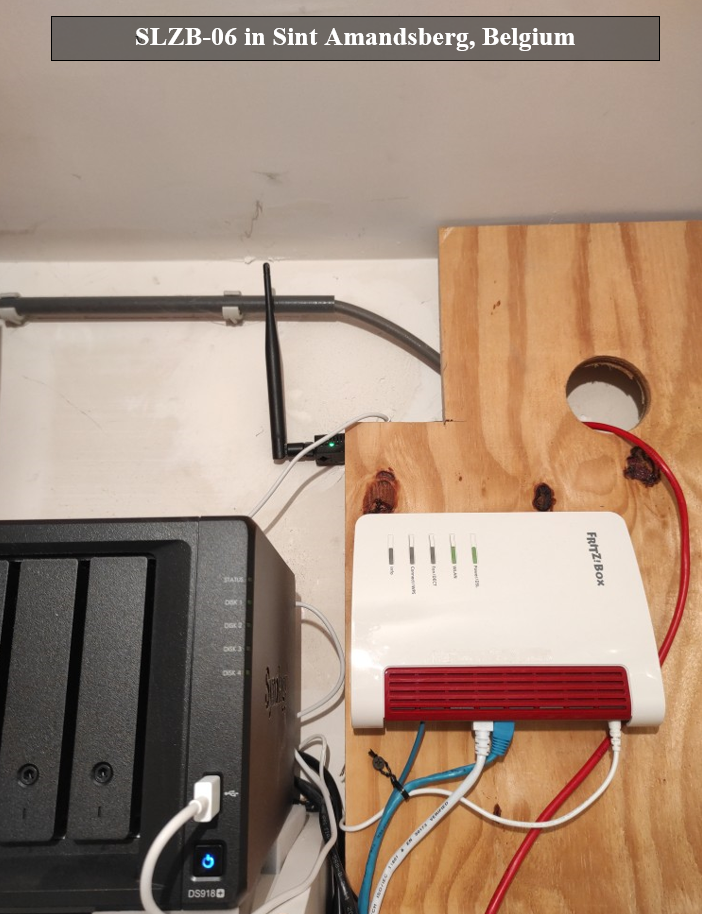

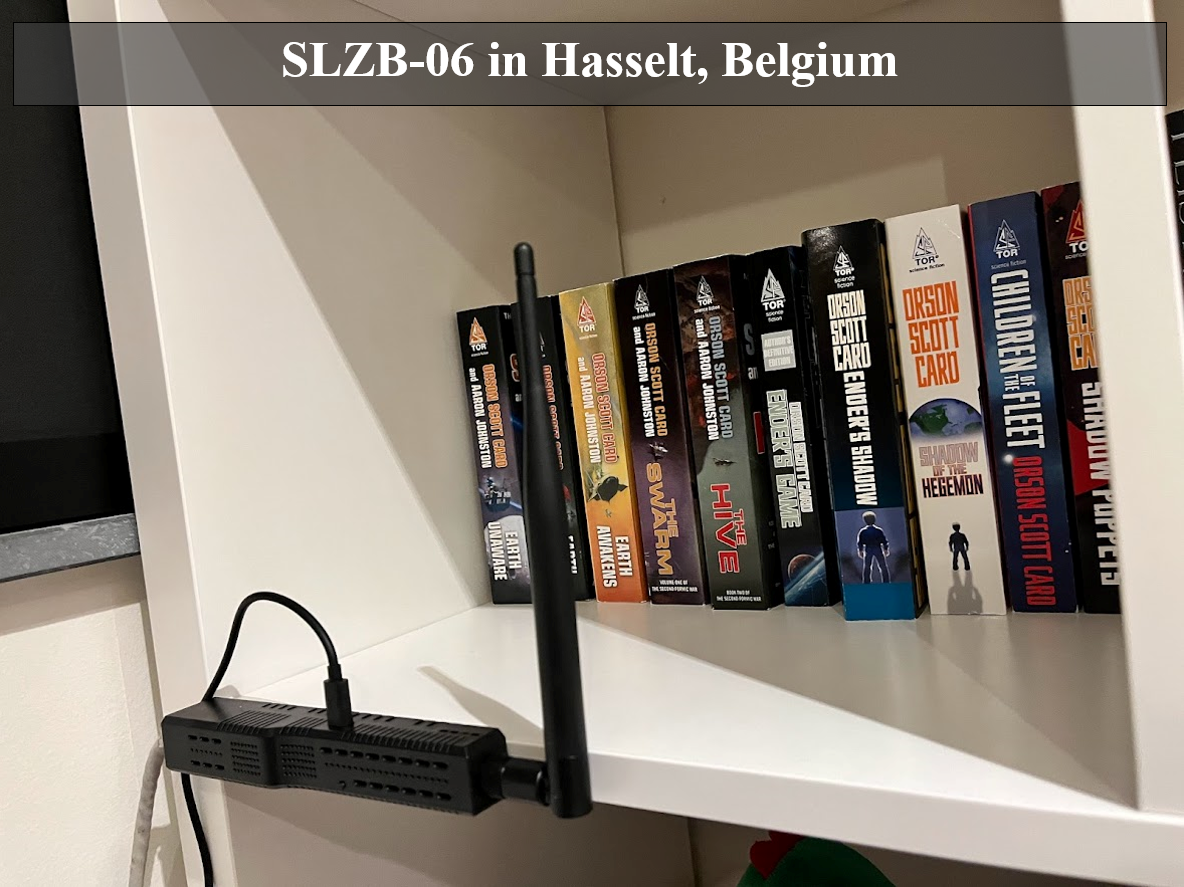

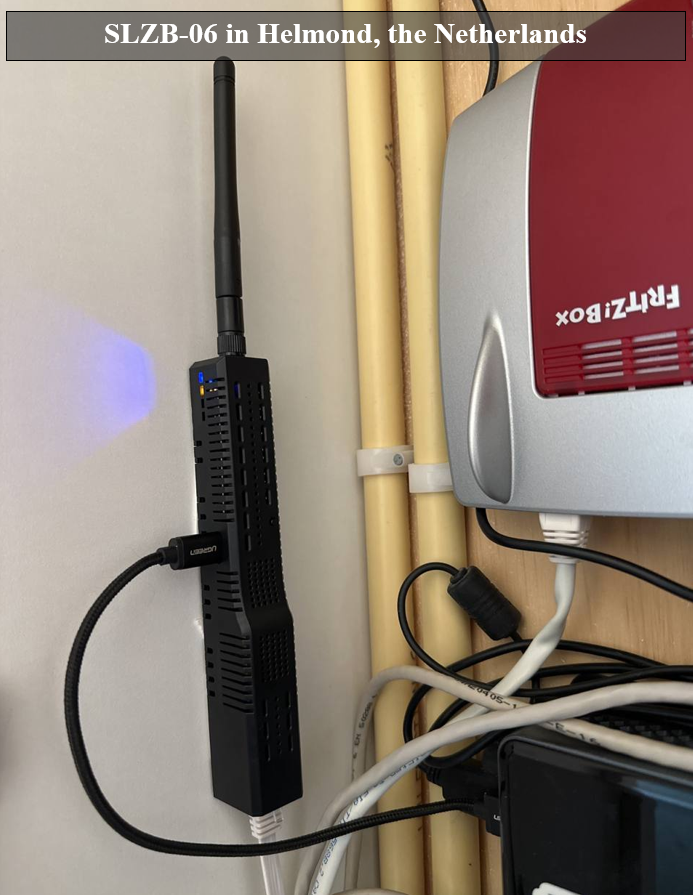

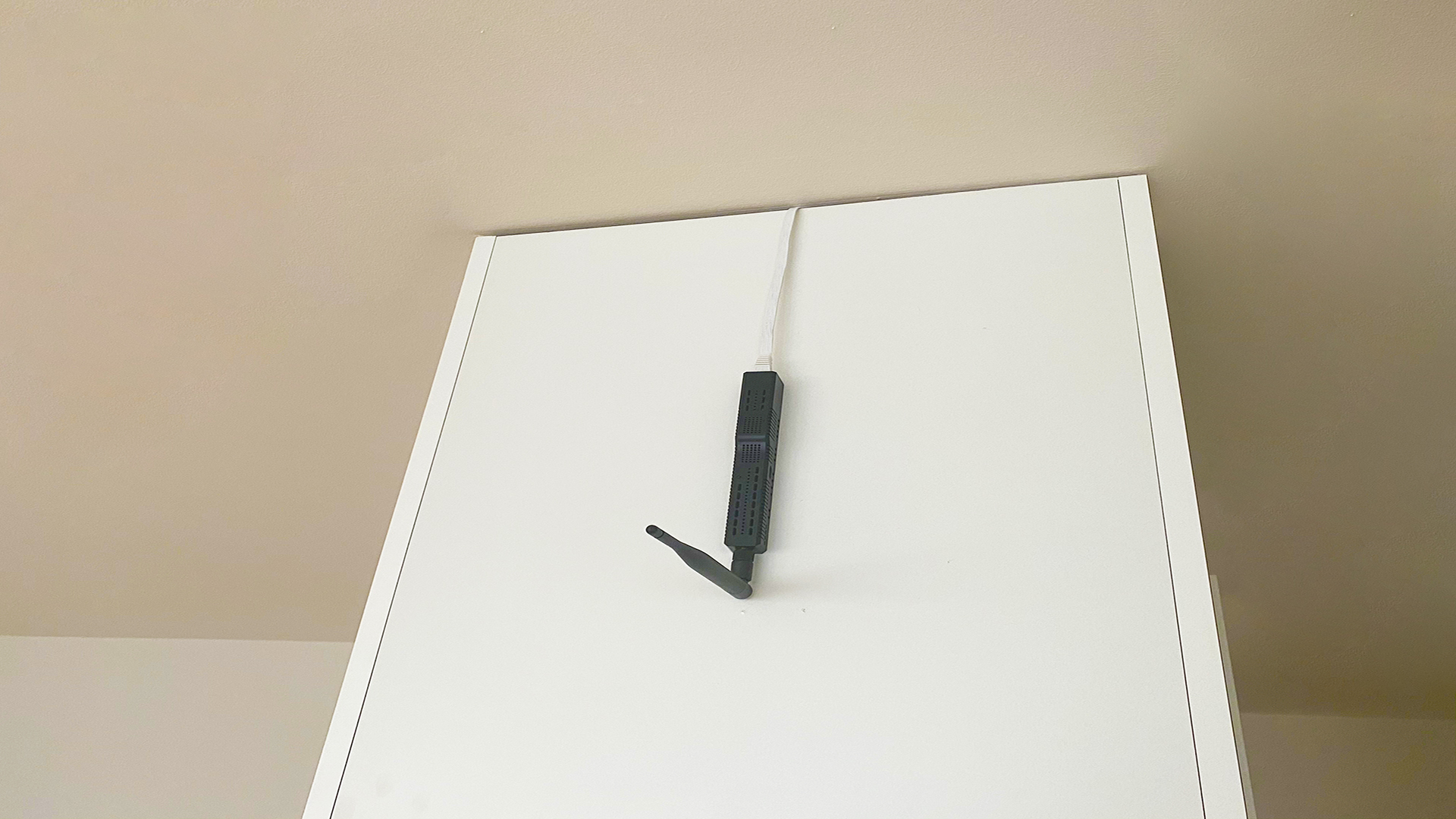

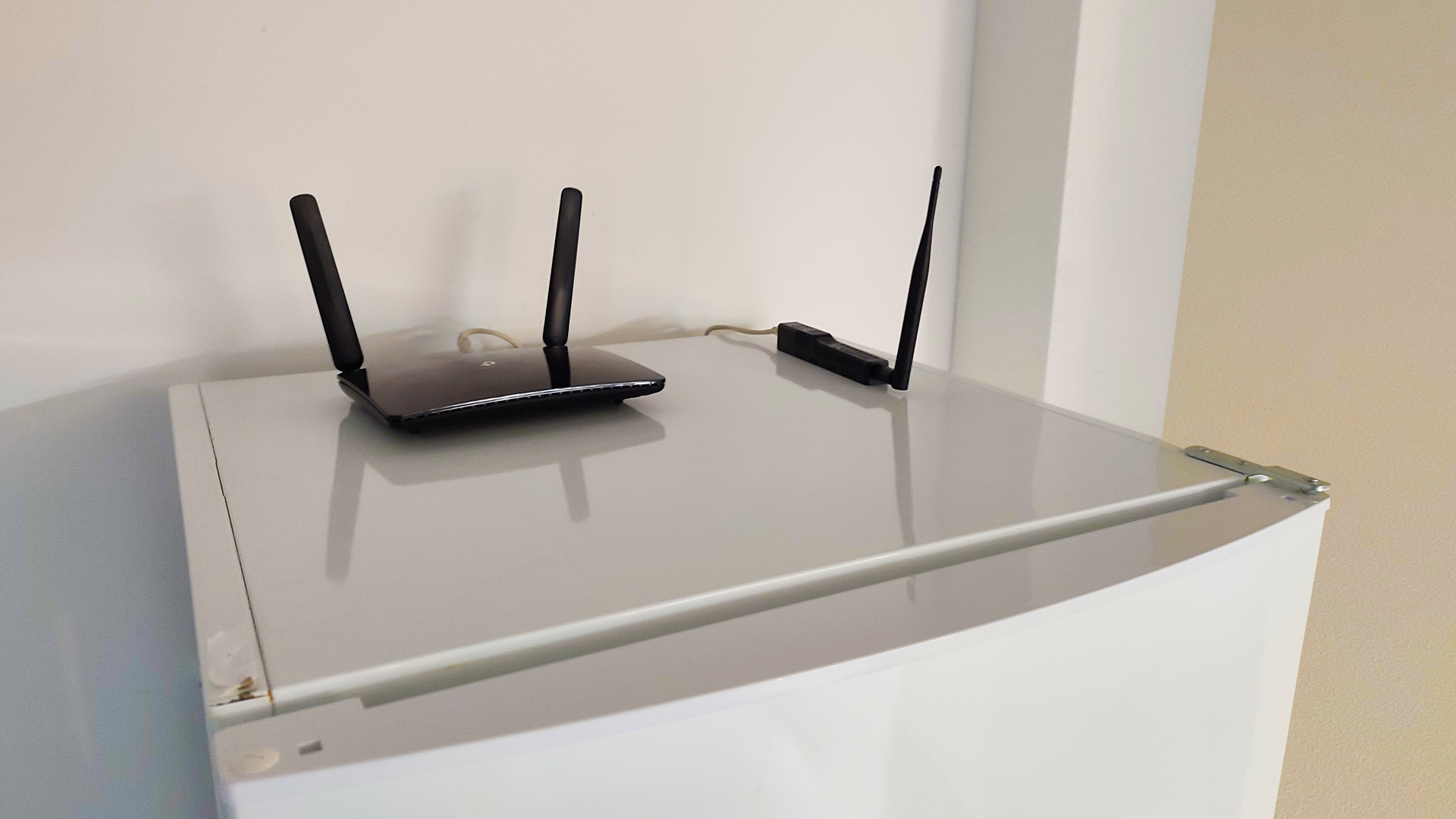

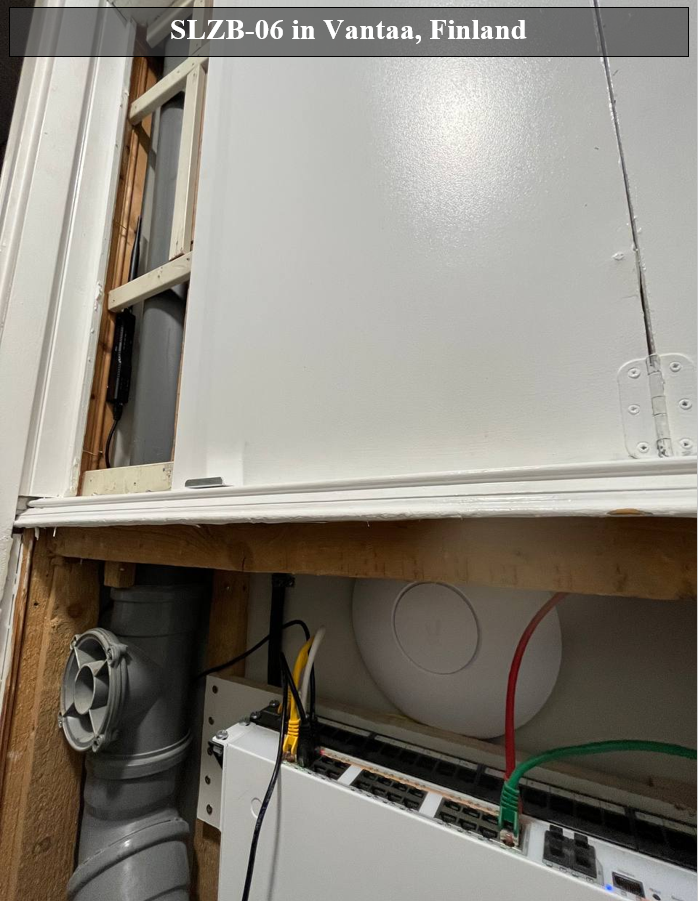

PRIVATE INSTALLATION EXAMPLES

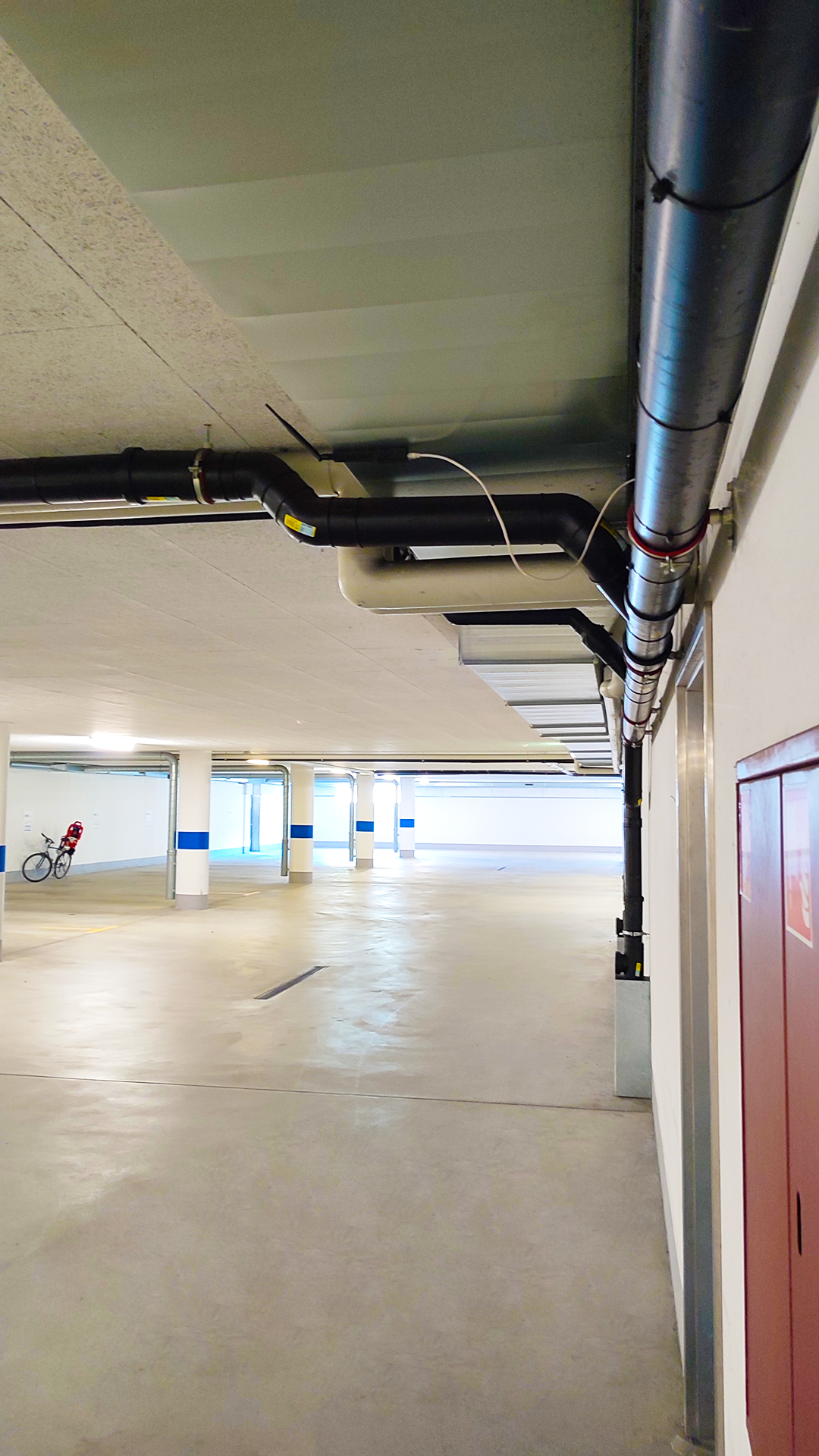

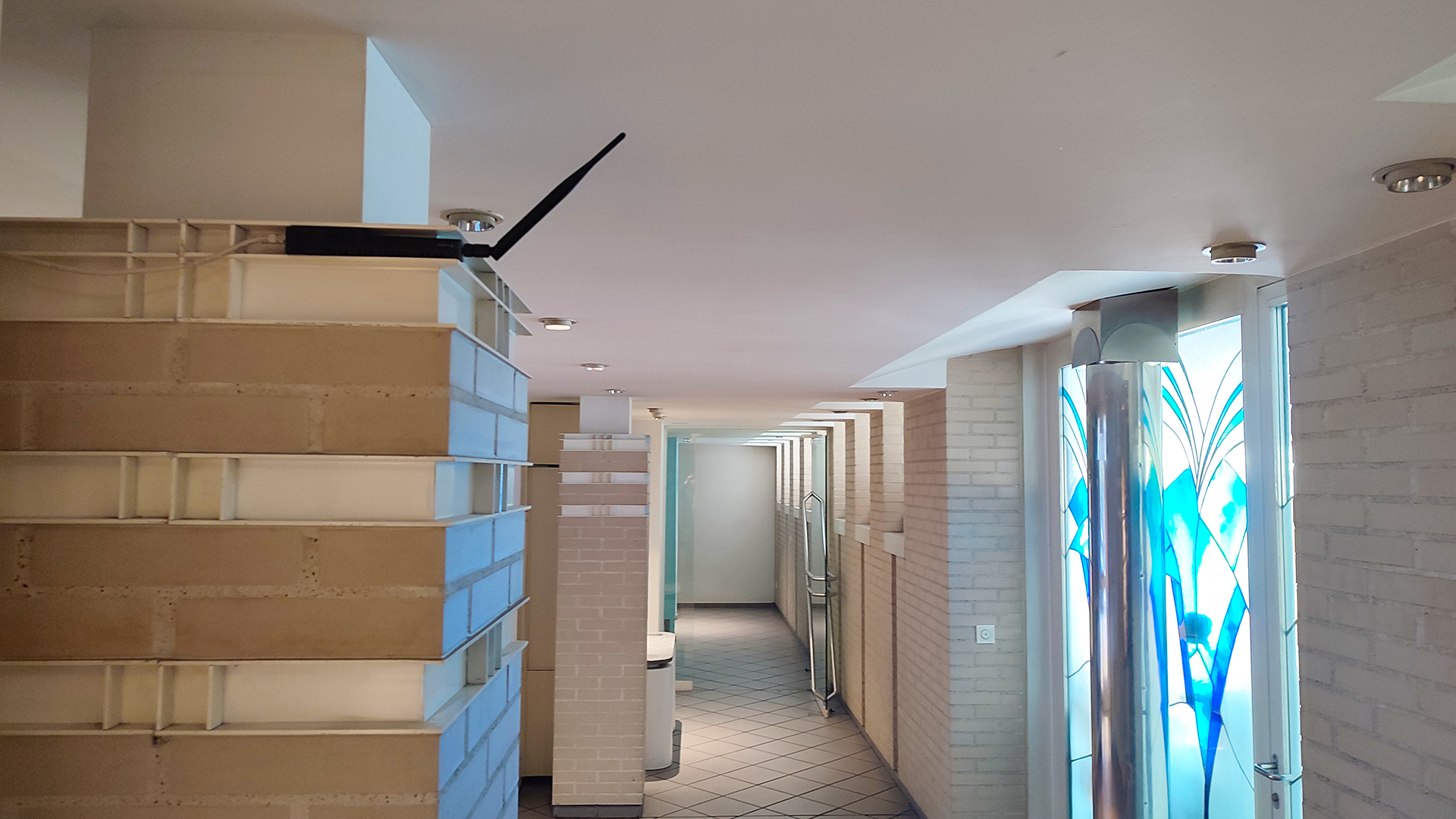

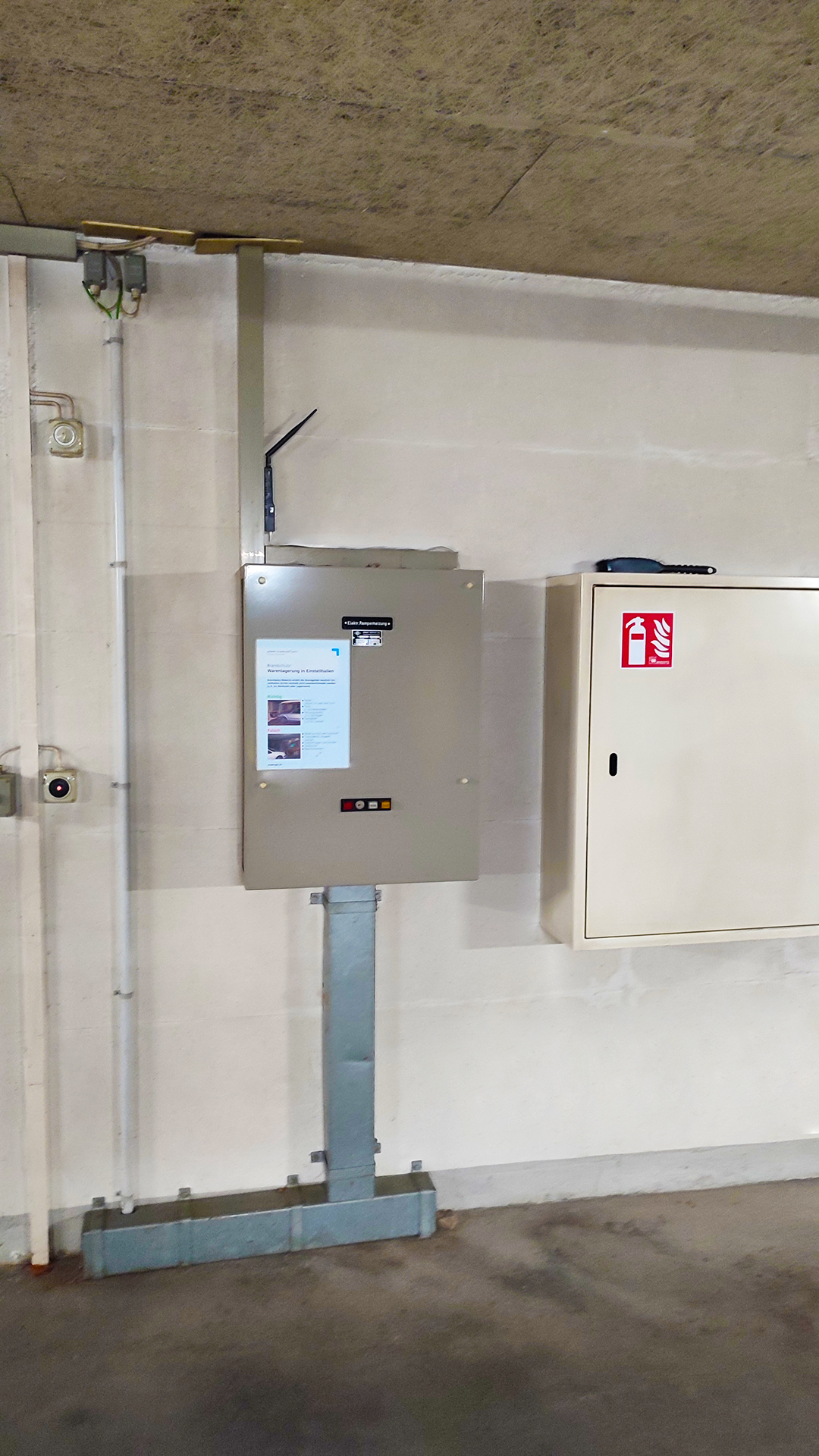

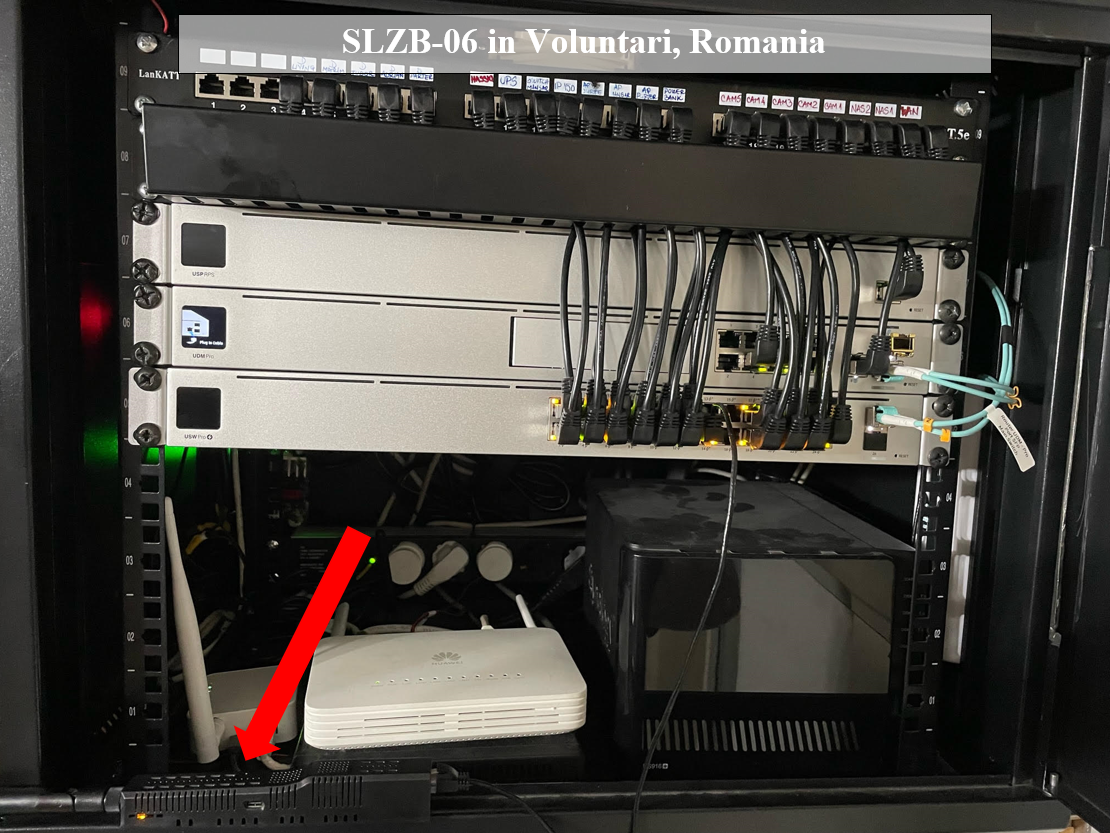

BUSINESS INSTALLATION EXAMPLES

WHAT MAKES SMLIGT SLZB-06 THE BEST OPTION TO USE AS YOUR ZIGBEE ADAPTER?

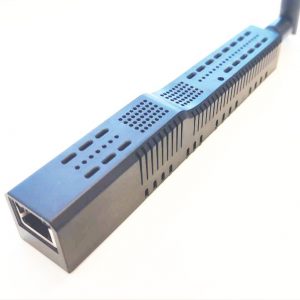

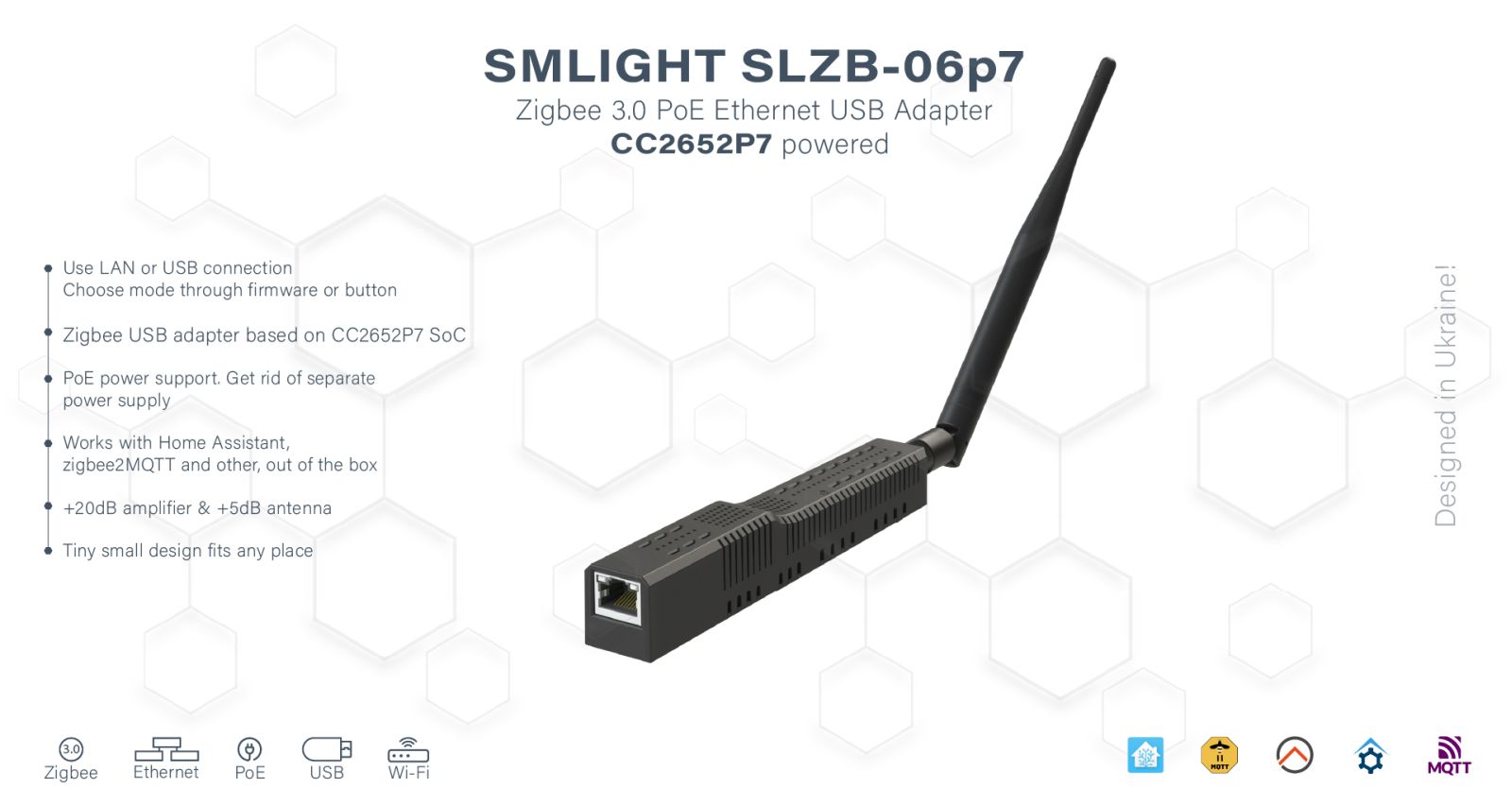

SMLIGHT SLZB-06p7
Other POE adapters
Supports Zigbee to Ethernet? Yes Yes
Change Ethernet/USB working mode through firmware distantly rather than by mechanical switches? Yes No
Based on powerful CC2652P7 Zigbee chip recommended by Zigbee2MQTT? Yes Yes
Is the antenna +5dB included in the package? Yes No / Yes
Based on UART/USB SoC CP2102 that supports up to 921600 bps speed? Yes No
Do not need to change the physical switch between POE and USB powering? Yes No
Has optoelectronic isolation between Ethernet and USB so you can securely connect both RJ45 and type-C at the same time? Yes No
ESP32 and CC2652P7 integrated as chips on a single board to improve the system’s stability rather as a combination of modules on the boards? Yes No
Tiny thin design (<22mm wide) to fit any small places? Yes No
Peripheral based on ESP32? Yes Yes
Supports ESP32 autoboot mode for flashing over Type-C? Yes No
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

FUNCTIONS



LAN or USB

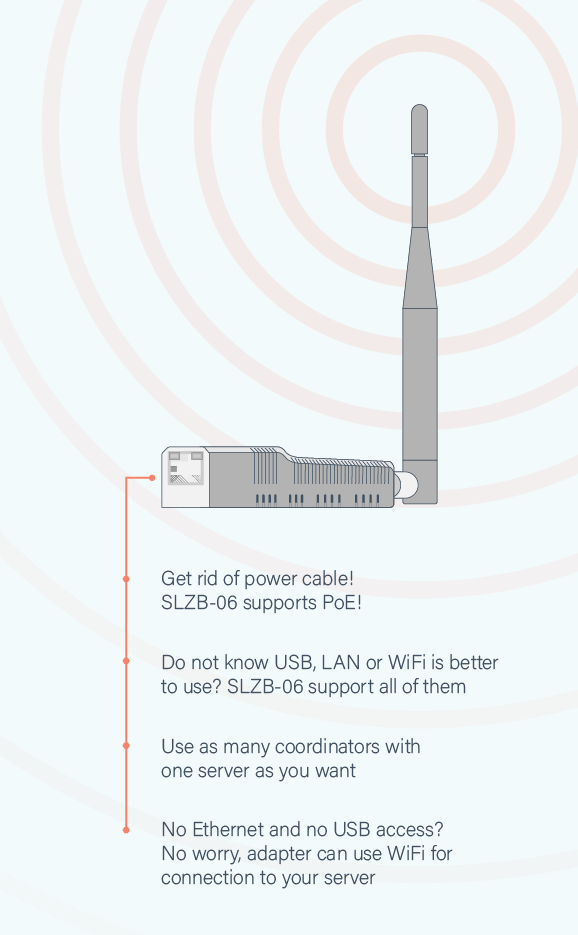

Use SLZB-06 as Zigbee 3.0 to LAN, WiFi or USB. Forget about separate devices. Change mode online or via button


PoE power

You can power your SLZB-06 device either through PoE or Type-C. PoE 802.5af standard is supported

+20dB +5dB

Zigbee 3.0 SLZB-06 adapter has +20dB amplifier on board & +5dB antenna. Cover your farthest locations

Coordinator or Router

Supports both Zigbee 3.0 modes – Coordinator or Router. Just flash over the web interface appropriate firmware

FIRMWARE



PRE-FLASHED

Just plug-and-play. You will get your SLZB-06 pre-flashed and ready to use

OPEN-SOURCE

For security geeks there is an open source firmware version that covers core basic functionality

ADJUSTABLE

Full control of your device. Need to change mode from LAN to USB? Just one click. Want to turn off Power LED? One click!i

SECURE

Control access to the Zigbee 3.0 SLZB-06 adapter’s settings through secure login and password

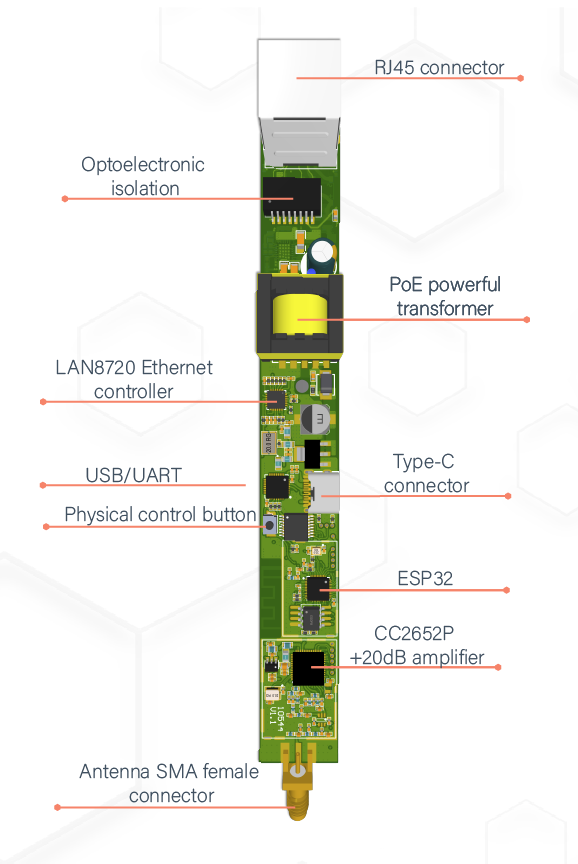

CHIPSETS AND TECHS



CC2652P7

Zigbee 3.0 SoC is based on the powerful chip CC2652P7 from Texas Instruments, reliability confirmed by thousands of users


ESP32

Powerful ESP32 chip makes control over all the functions of the device

LAN8720

Reliable Ethernet SoC from Microchip takes care on stable Ethernet connection

CP2102

Best in class USB/UART SoC converter. Do not compromise on speed and quality

UPDATES



REMOTE ZIGBEE UPD

The only Zigbee coordinator with the option to update Zigbee chip over web-interface just with one click!



REMOTE ESP32 UPD

ESP firmware could be updated distantly. Full control wherever you are!

ESP32 Autoboot

SLZB-06 features auto boot mode for ESP32. If you want to flash over USB – just plug-and-do!

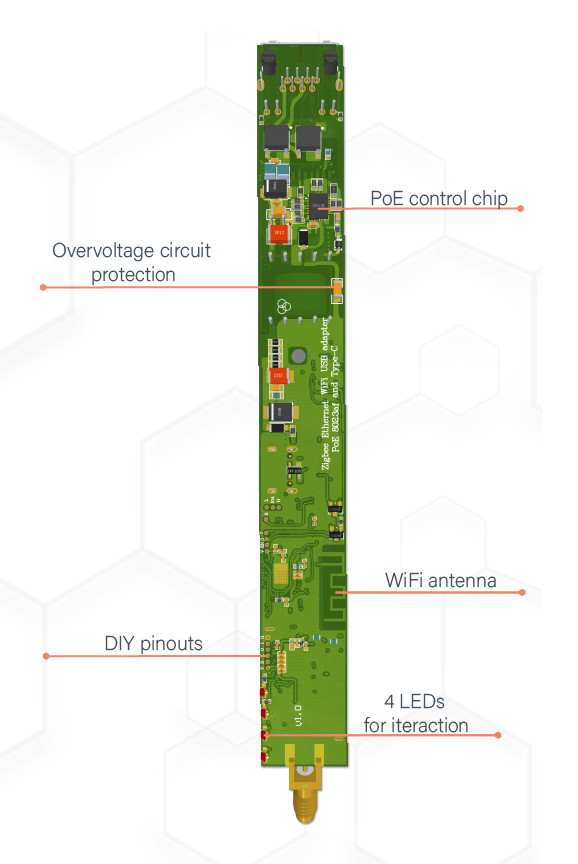

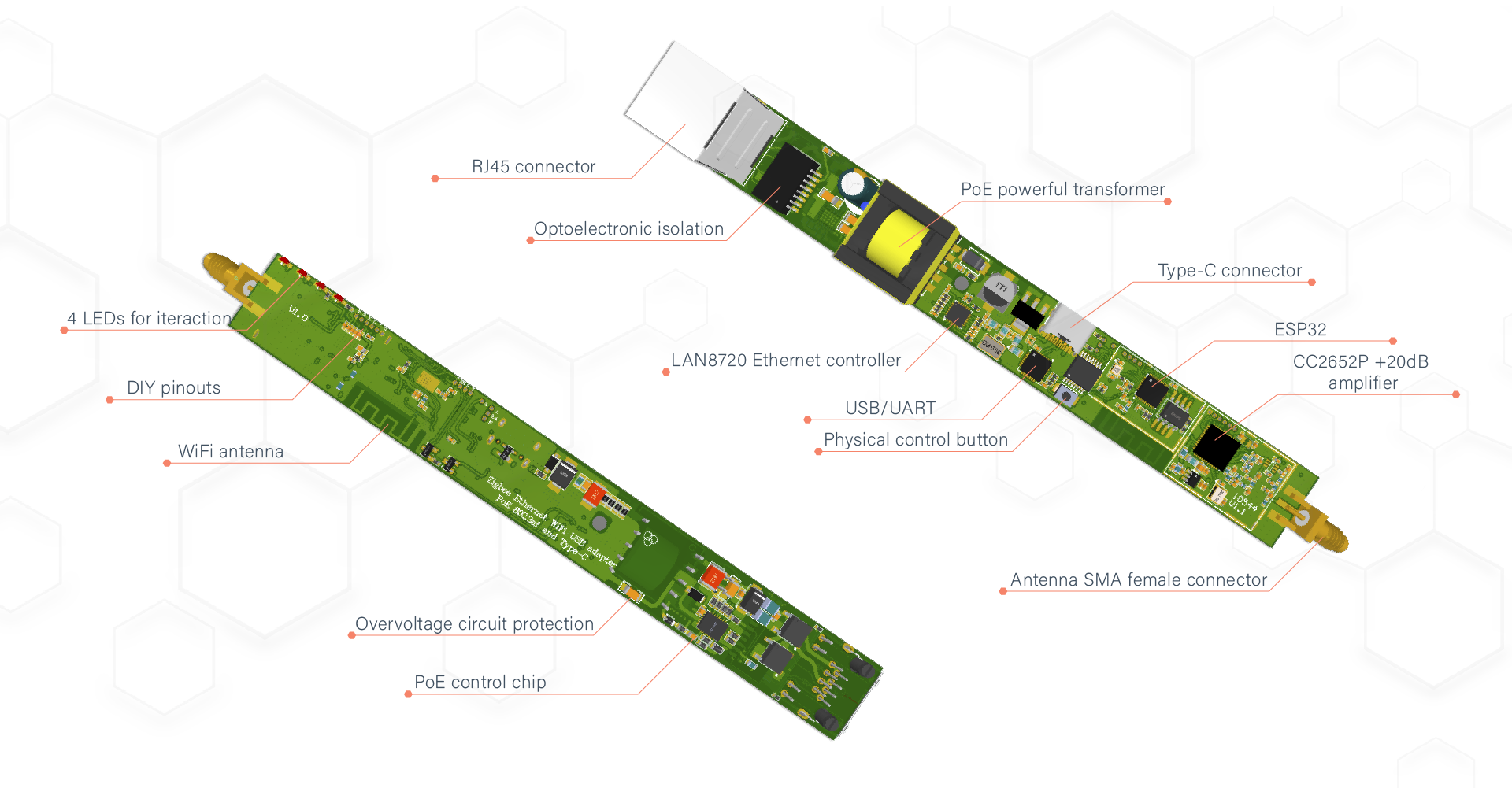

DIY PINOUTS

SLZB-06 is a DIY enthusiasts friendly: it contains pinouts for both ESP32 and CC2652P chips

USER FRIENDLY

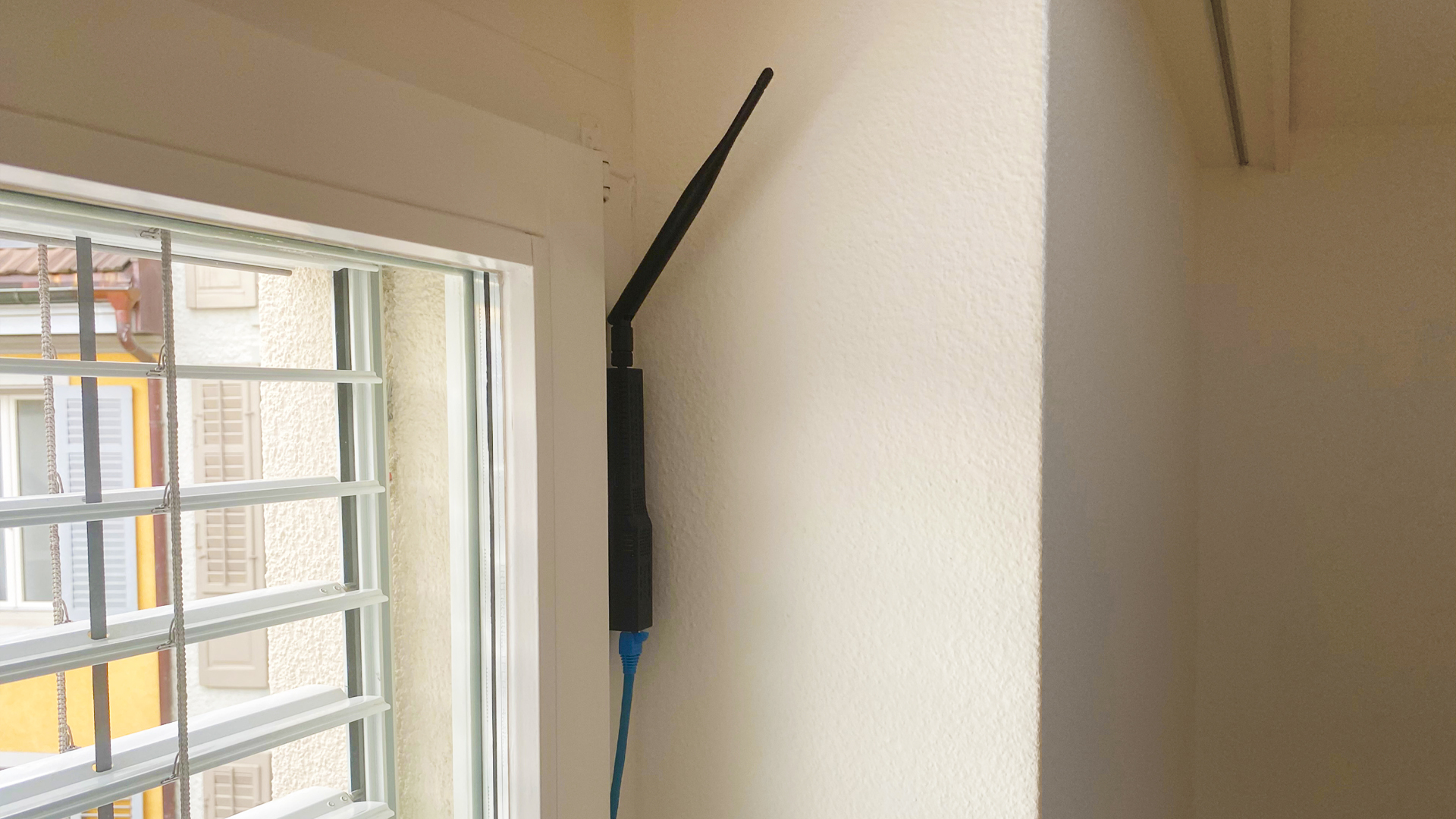

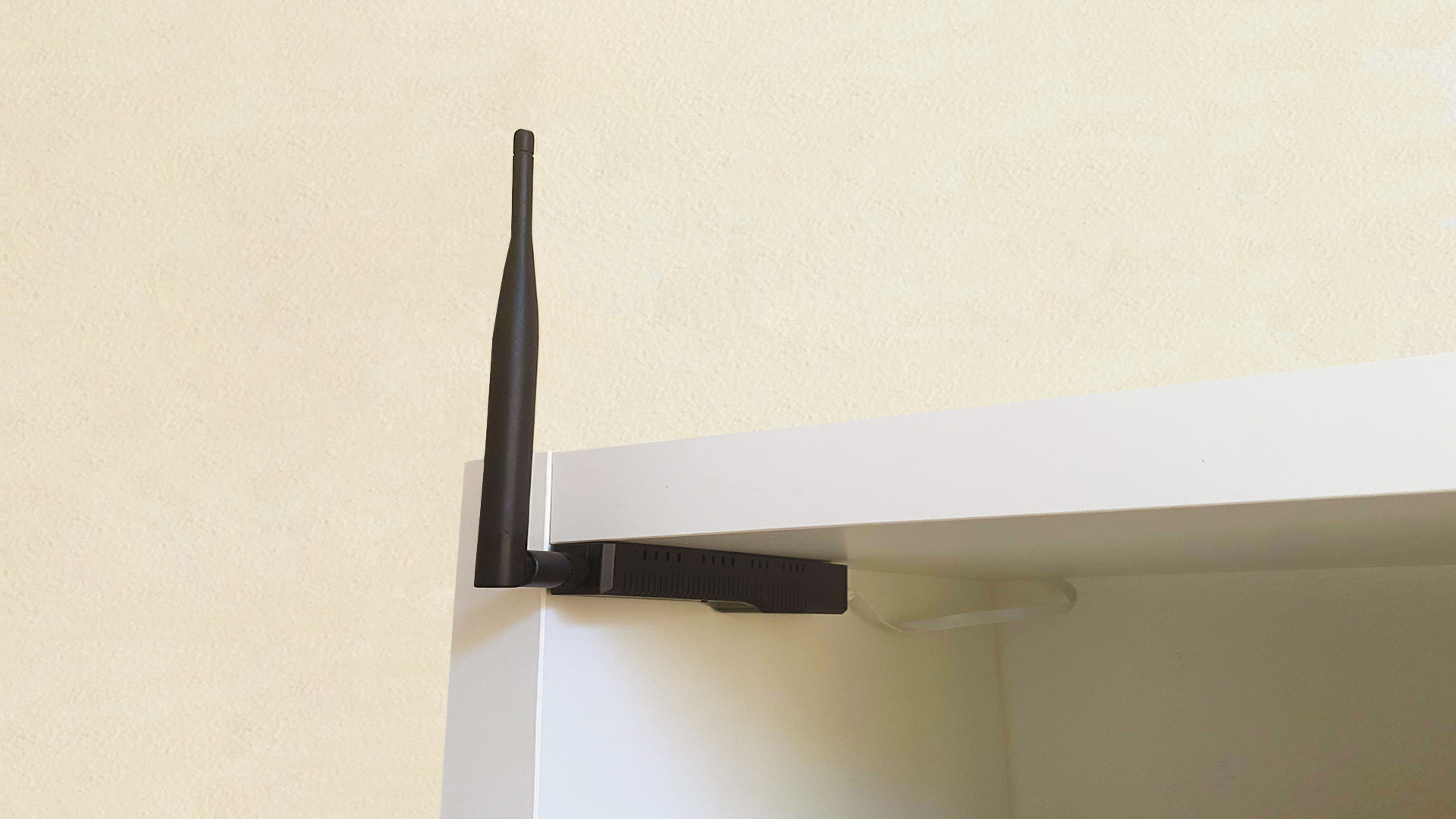

EASY TO PLACE

Want to install it on the wall or under the table? Use doulbe sided adhesive tape or screws, SLZB-06 fits both!

NEWBY? MANUAL!

Do not know how to start? No worries, exhaustive manual is included!

POWERFUL ANTENNA

Need co cover with Zigbee network big area? No worries, powerful antenna is included!

TINY DESIGN

Now you can put your adapter wherever you want! SLZB-06 is a small and tiny!

OTHER



4X LEDS

Do you like responses from your devices with LED? SLZB-06 has 4 LEDs for intercation with the users!



BUTTON

Control device mode and other functions through physical button.

ROTATABLE ANTENNA

Rotatable in 3 dimensions antenna secures best positions for the best signal

MADE IN UKRAINE

SLZB-06 designed, developed and tested in Ukraine. Ukrainian quality guaranteed.

slzb-06-firmware-mobile
slzb-06-firmware-mobile

SMLIGHT SLZB-06 – UNBOXING

SMLIGHT SLZB-06p7 SPECIFICATIONS

SLZB-06p7 SPECIFICATIONS
Main Zigbee 3.0 chip CC2652P7 Texas Instruments
Main control chip ESP32 Espressif
USB/UART converter CP2102
Ethernet SoC LAN8720
Zigbee SoC output gain +20dB
Additional gain antenna +5dB
Ethernet support Yes
WiFi support Yes
PoE support Yes
PoE standard supported IEEE 802.3af (15W)
USB Type-C control Yes
ESP32 Flasher integrated Yes, based on CP2102
ESP32 Autoboot Yes, through DTR / RTS
Pre-flashed Yes, Zigbee and ESP
Zigbee 3.0 Coordinator mode Yes
Zigbee 3.0 Router mode Yes
Zigbee to Ethernet Yes
Zigbee to USB Yes
Zigbee2MQTT support Yes
ZHA support Yes
Tiny design Yes, 160x22x24mm
Operating environment +5 – +35 C



SMLIGHT SLZB-06p7 FREQUENTY ASKED QUESTIONS (FAQ)

Does SLZB-06p7 works with Home Assistant out of the box?

Yes, it does. Just plug in SLZB-06p7 into your LAN Ethernet or USB, and that is it. SLZB-06p7 is pre-flashed and ready to use.

Can I set up multiple SLZB-06p7 coodinators with one Home Assistant?

Yes, you can. You can set up as many SLZB-06p7 coordinators as you want with one Home Assistant. For that, you just need to run a separate instance of Zigbee2MQTT for each coordinator. We have now received feedback from our lovely Customers about using 6 items with one Home Assistant. Please also note that you can connect to devices that are outside your LAN network, e.g., somewhere in another location with access to the internet. More details can be found in this Article of the official manual.

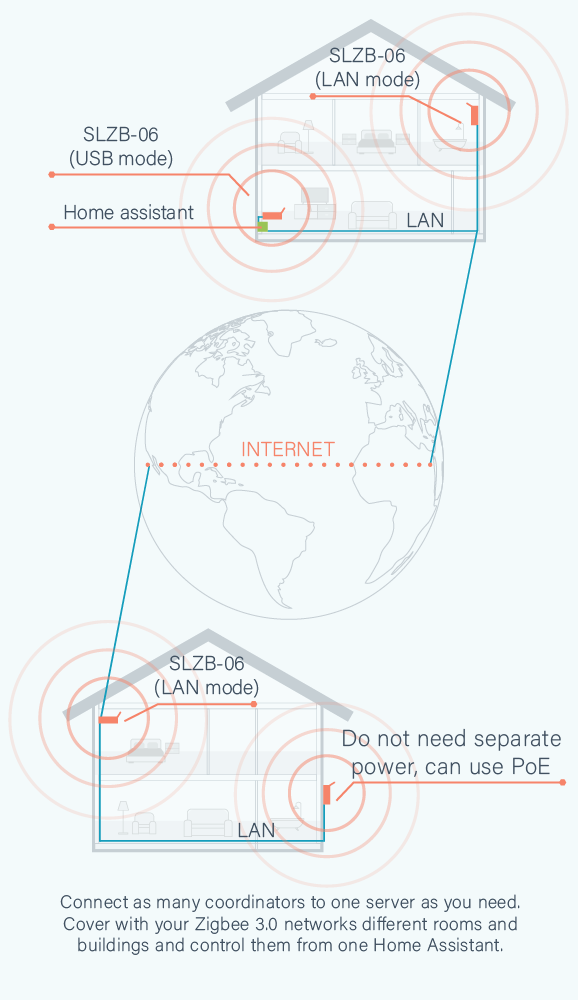

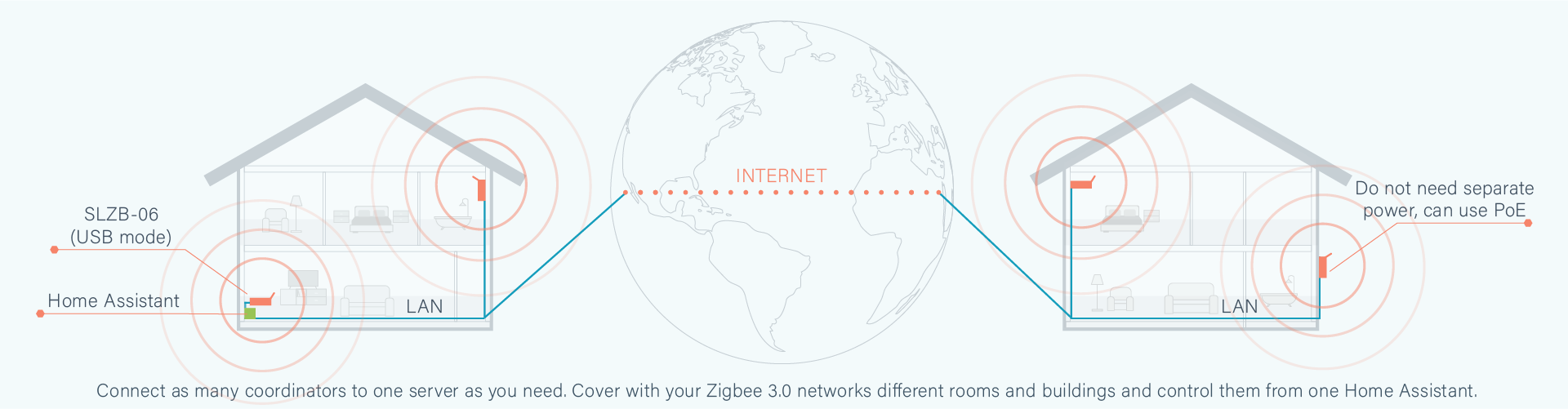

Overall system architecture with multiple adapters looks like this:

How to select mode USB/Ethernet? Any physical switches?
The device can be switched between USB or Ethernet either through a web-interface or by button. Just short press – and the work mode changed. Switching by web interface allows changing the work mode distantly.
Do I need to change powering either from POE or USB? Any switch?
Oh no. You do not need to think about tit. No switches. Just plug in POE or type-C or both – and the device works. It distinguishes power sources and acts correspondingly.
Can I update firmware distantly, without physical access to the SLZB-06p7?

Yes, you can. Both main chips used in SLZB-06p7 (CC2652P7 and ESP32) can be updated distantly from the other global point. That makes the device suitable for installation in rare-visited locations or installation places.

Does it supports POE powering?
Yes, it does. The device support POE standard IEEE 802.3af. That is the “basic” POE widely used standard. Just plug and use; you do not need any other additional power cables and plugs.
What is ESP32 Autoboot?

That is for “Pro” users who want to flash SLZB-06p7 with the type-C connection. ESP32 Autoboot means that the device contains a built-in programmer and schematic that allows flashing ESP32 without any additional activities: you do not need to press buttons to make ESP32 in flash mode, and you do not need to plug in additional programmers. The only thing you need – just to plug in type-C and start flashing. Easy.

Can I connect to type-C and RJ45 at the same time? Optoelectronic isolation at place?

Yes. The device contains optoelectronic isolation between USB and Ethernet parts. So you can plug in SLZB-06p7 to both RJ45 and type-C at the same time.

When close to ear, I hear little noise from the PoE transformer. Is it Ok?
The enclosure of the device contains vent holes, and when close to the ears, you can hear little noise from the POE transformer. The normal is if you can’t hear it more than 50 centimeters from the device.
Can it work as Zigbee-to-WiFi adapter?

Yes. A brief review of Zigbee-to-WiFi functionality is here: https://youtu.be/naSb9n22_8Y
