12. Settings & Tools

The Settings & Tools section in SLZB-OS contains core configuration and maintenance options that apply to the entire coordinator, regardless of the selected Zigbee mode or network configuration.

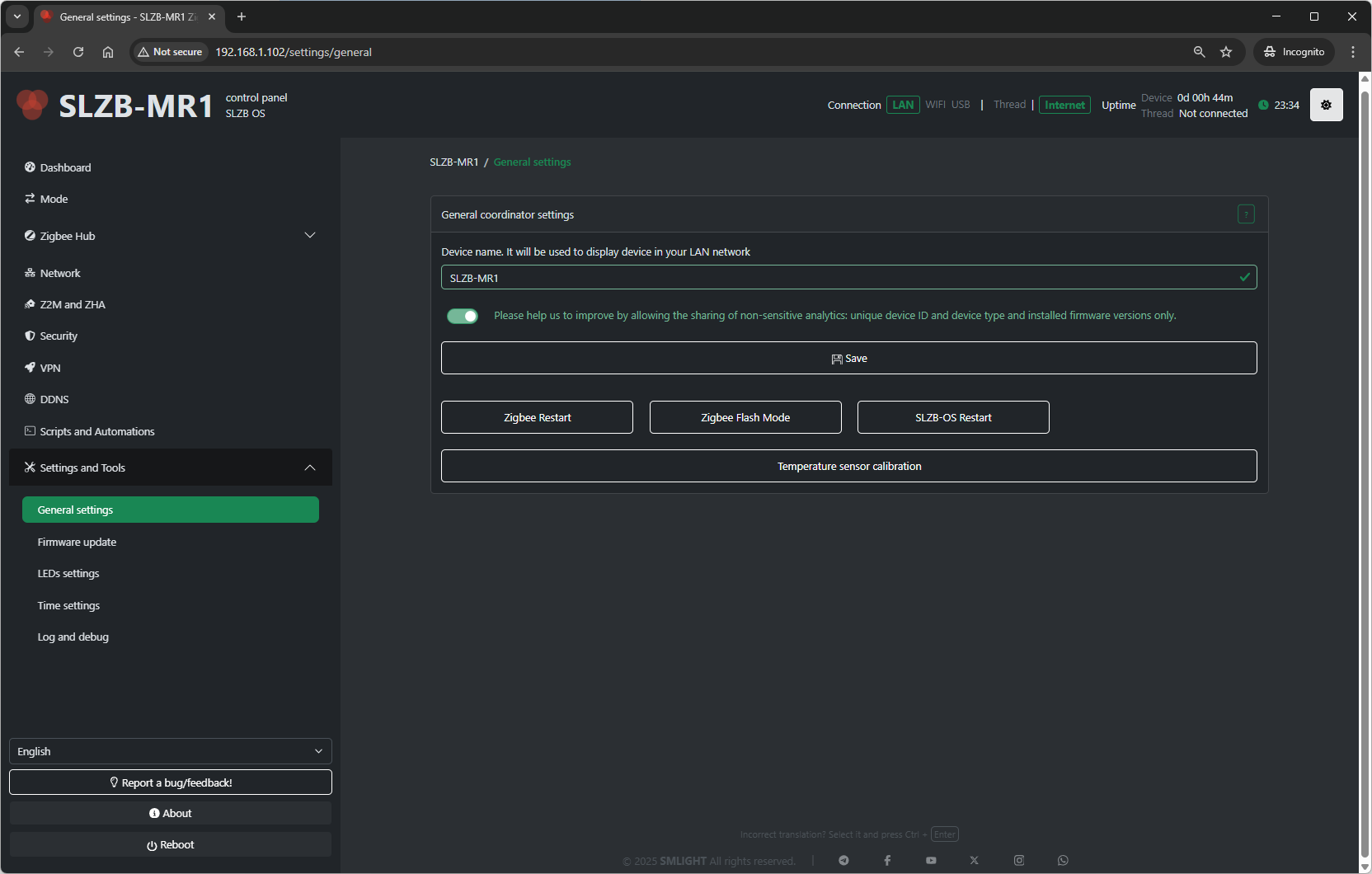

12.1 General Settings

12.1.1 Device Name

  • Sets a friendly name for your coordinator.

  • Appears in the web interface header and can help distinguish multiple devices.

12.1.2 Update Check Interval

  • Defines how often SLZB-OS checks for firmware updates (in hours).

  • Minimum: 1 hour; Maximum: 168 hours (1 week).

12.1.3 Enable Remote Support Mode

  • Allows temporary remote access by SMLIGHT support (if instructed).

  • For troubleshooting purposes only.

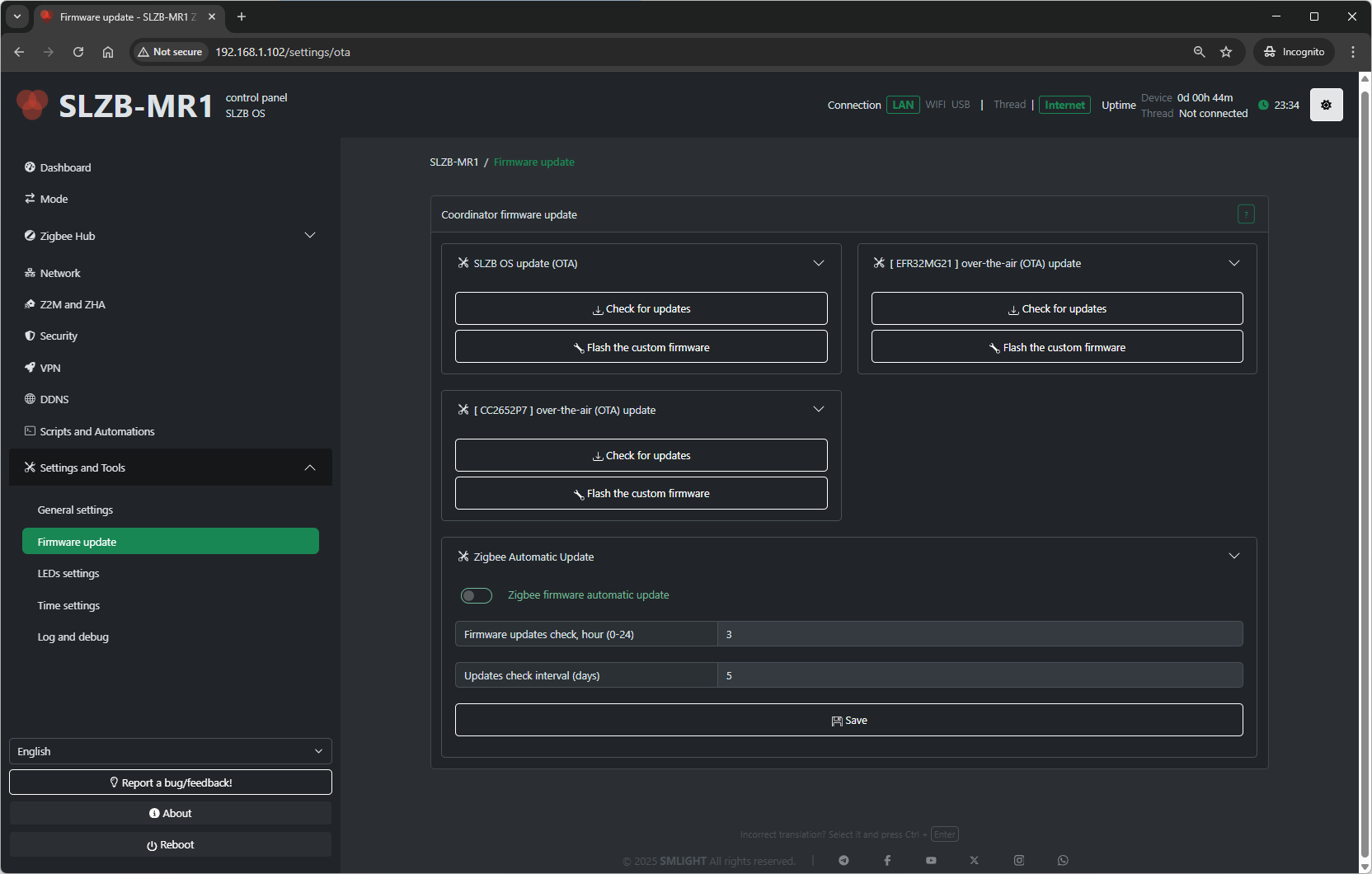

12.2 Firmware Update

The Firmware Update page allows upgrading SLZB-OS to the latest release or a specific version.


12.2.1 Update Methods

  1. Online Update

    • Fetches and installs the latest stable firmware from SMLIGHT servers.

  2. Manual Upload

    • Lets you upload a .bin firmware file from your computer.

12.2.2 Update Process

  1. Select update method (online or manual).

  2. Confirm and start update.

  3. Device will reboot automatically after installation.

Note: Updating SLZB-OS does not affect your Zigbee network data — Zigbee pairing and configuration are stored in Zigbee2MQTT/ZHA, not in the core firmware.

12.2.3 Automatic Zigbee Firmware Updates

  • Enable Zigbee Automatic Updates (checkbox):

    • When enabled, SLZB-OS will automatically check for Zigbee firmware updates every # DAY and TIME (for example, every fifth day at 3 am)

    • If a new version is found, the Zigbee chip will update automatically.

    • This process restarts the Zigbee component — ensure your Zigbee2MQTT or ZHA setup is ready to reconnect devices after the restart.

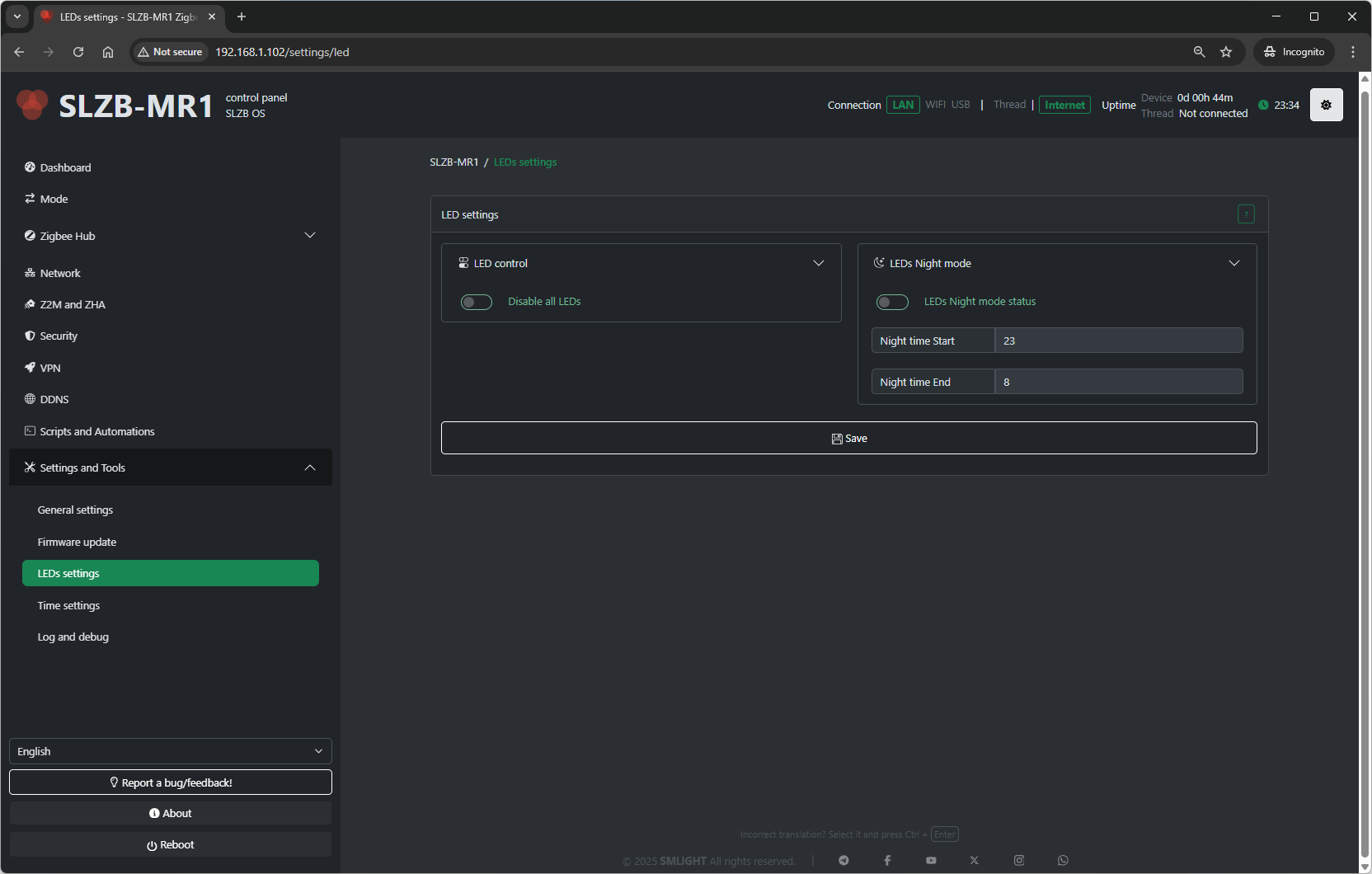

12.3 LED Settings

This page configures the behavior of the onboard status LEDs.


12.3.1 LED Modes

  • Always On – LEDs remain lit continuously.

  • Always Off – LEDs are disabled entirely.

  • Status Indication – LEDs display network or coordinator activity.

  • Blink on Activity – LEDs flash when Zigbee or network events occur.

12.3.2 Brightness

  • Adjusts LED brightness (0–100%).

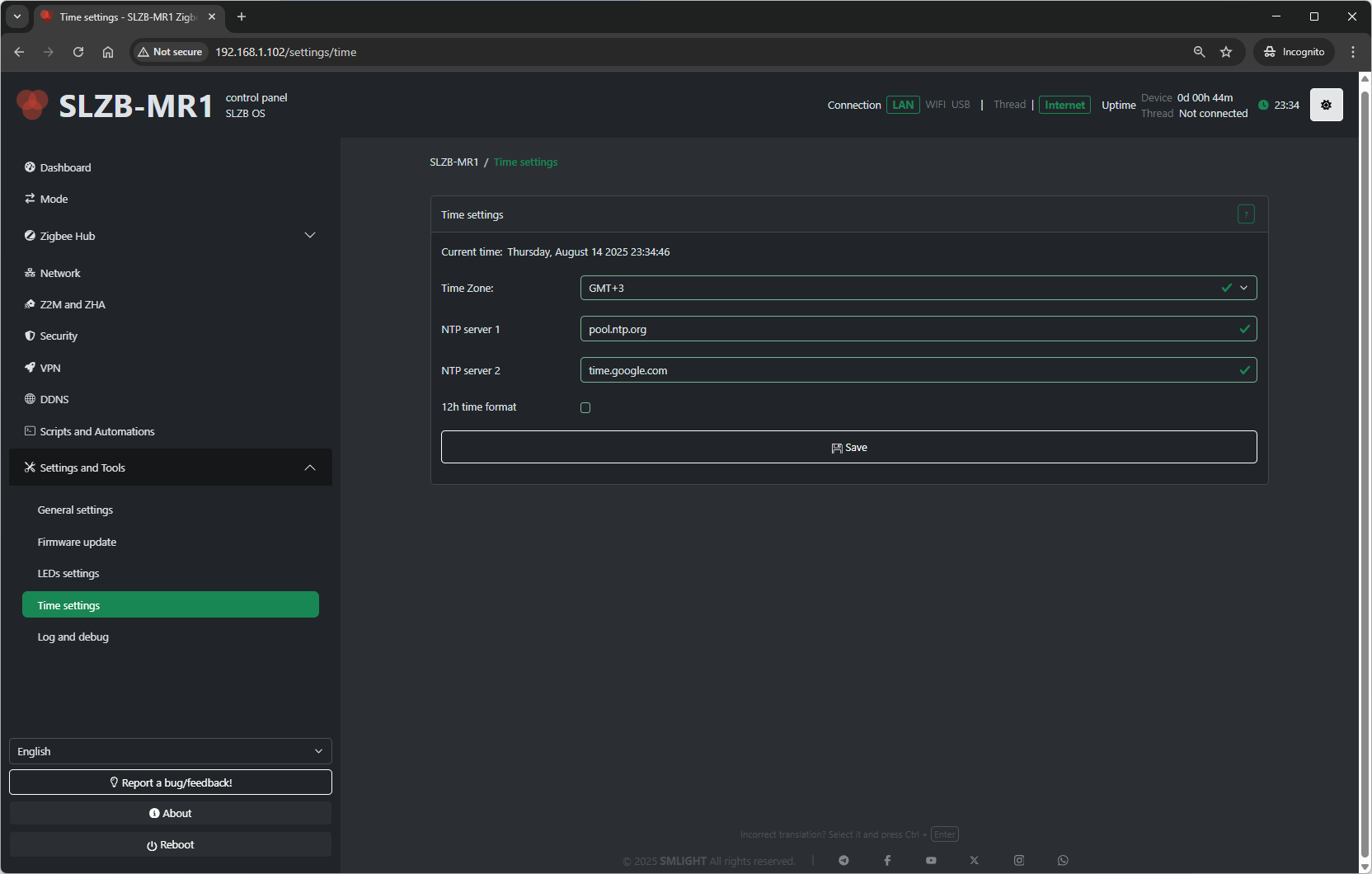

12.4 Time Settings


12.4.1 Time Zone

  • Select the time zone for the coordinator’s internal clock.

12.4.2 NTP Server

  • Specify the Network Time Protocol (NTP) server used for synchronization.

  • Default is a public NTP pool, but you can set a local NTP server.

12.4.3 Manual Time Set

  • Option to set time and date manually if NTP is not used.

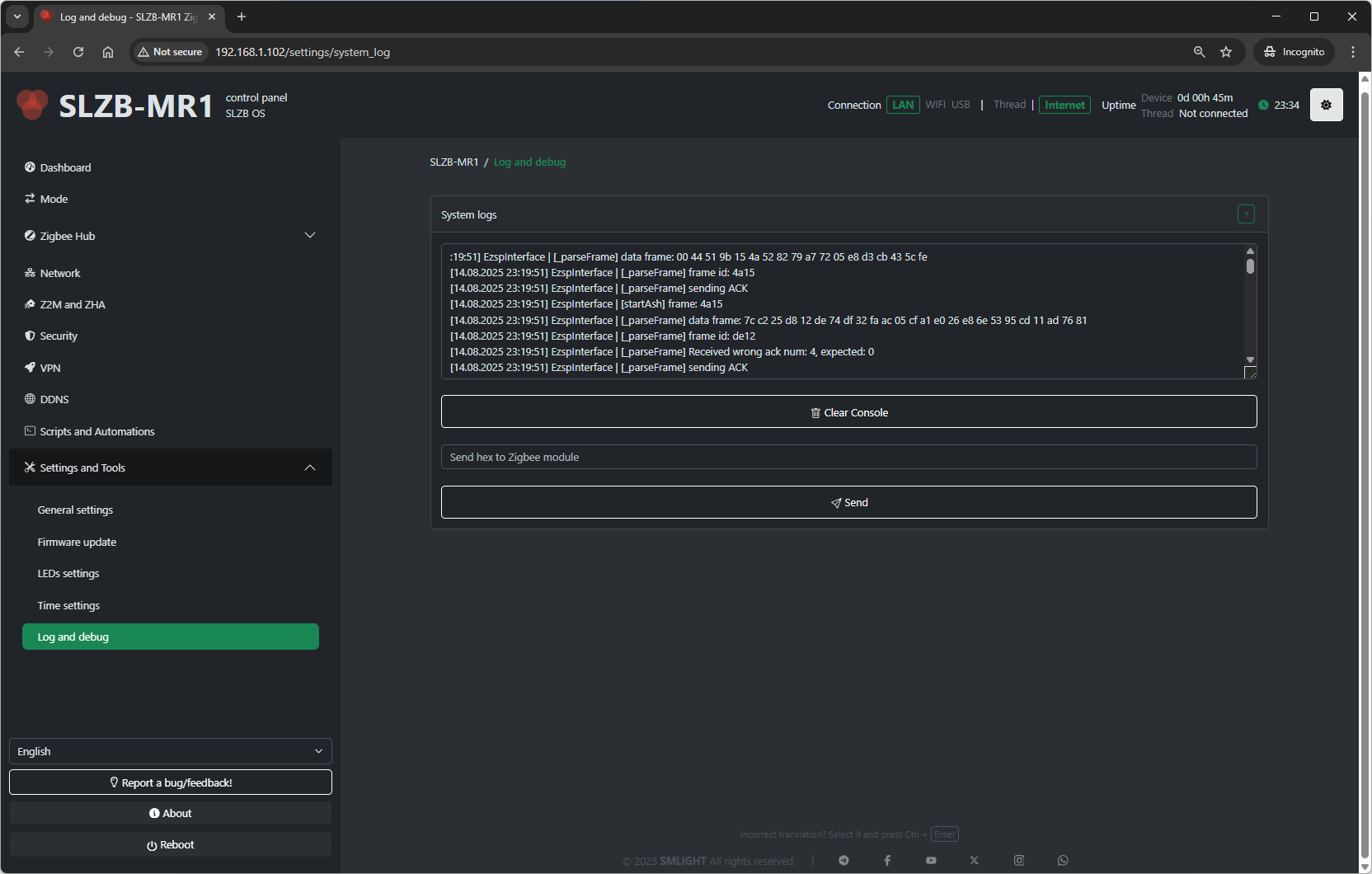

12.5 Log and Debug

This section helps in troubleshooting and monitoring.


12.5.1 Clear Logs

  • Deletes all stored logs on the device.
