5. Network Settings

The Network page in SLZB-OS manages how your device connects to your local network and, if required, to the internet.
The available sections may vary depending on the selected Mode and hardware capabilities (Ethernet, Wi-Fi).


5.1 Information Block

At the top of the page you may see an info notice if certain network interfaces are inactive.
Example:

“Wi-Fi page is inactive because Wi-Fi mode is not activated.”
To enable it, change the device’s mode to one that supports Wi-Fi (see Mode page).

5.2 Connection Overview

A visual diagram shows the main connections:

  • LAN – Wired Ethernet connection.

  • Wi-Fi – Wireless interface (if enabled).

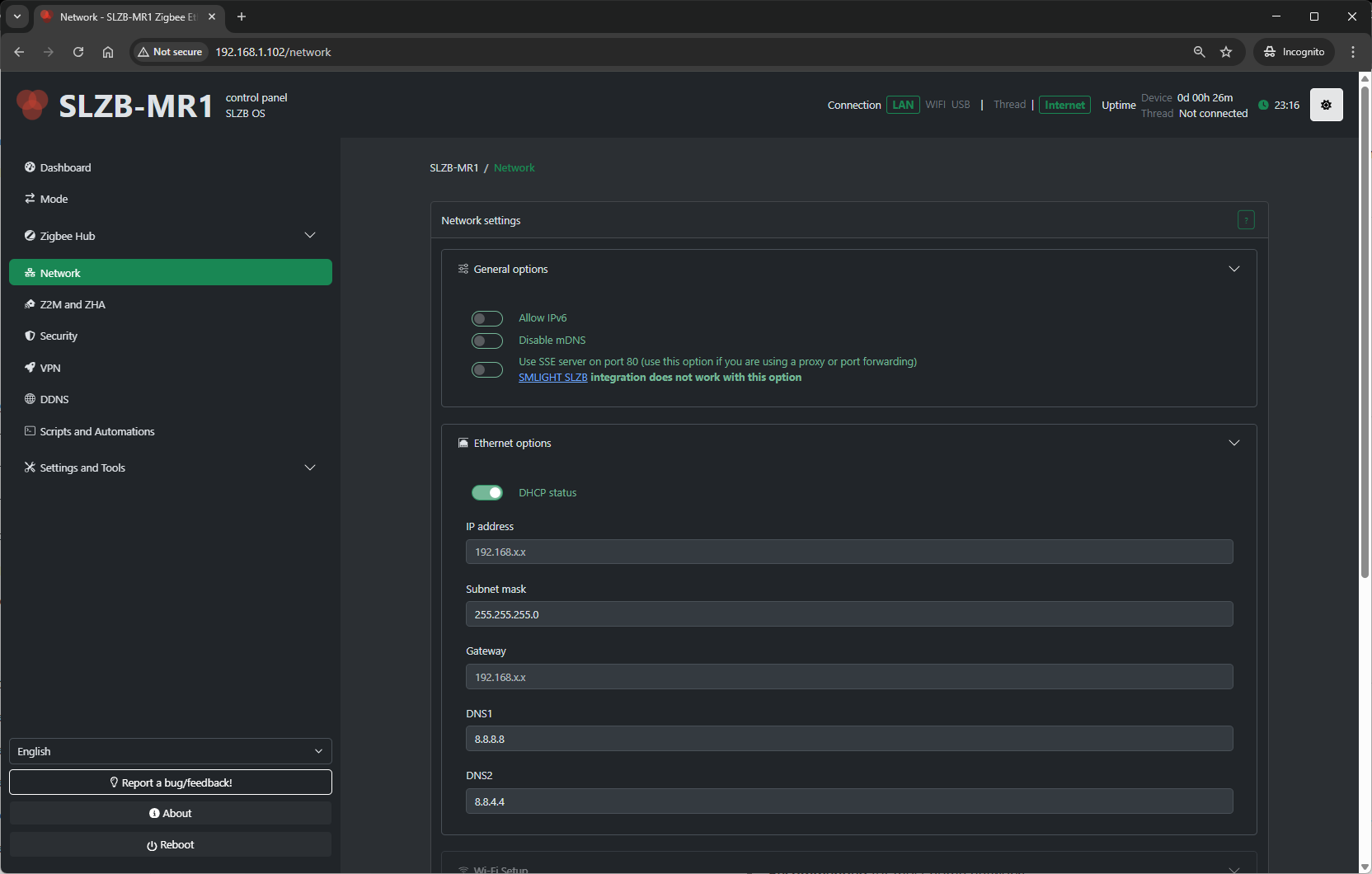

5.3 LAN / Ethernet Settings

Ethernet is the primary connection method for most SLZB devices.

5.3.1 DHCP (Dynamic Host Configuration Protocol)

  • Enable to have the SLZB device automatically receive network settings (IP, subnet mask, gateway) from your router.

  • Recommended for most home networks.

5.3.2 Static IP Configuration

If DHCP is disabled, manually configure:

  1. IP Address – The fixed address the device will use. Must be unique on your network.

  2. Subnet Mask – Defines which IP addresses are considered local (e.g., 255.255.255.0).

  3. Gateway – The IP address of your router or gateway to access external networks.

  4. DNS Server(s) – Optional; used to resolve domain names. Defaults to your gateway if not set.

Tip: Use a static IP if you run integrations that need a consistent address (e.g., Home Assistant with static MQTT host).

5.4 Wi-Fi Settings

(Visible only when Wi-Fi mode is active)

5.4.1 Scan for Wi-Fi Networks

  • Searches for available networks.

  • Displays SSID, signal strength, and security type.

5.4.2 Connect to Network

  • SSID – Chosen from scan or entered manually.

  • Password – Required for secured networks.

  • Security Type – WPA/WPA2, WPA3 (depending on hardware/firmware).

5.4.3 IP Configuration

  • Same as Ethernet — can use DHCP or set Static IP, Subnet, Gateway, DNS.

5.5 Applying Changes

  1. Adjust the settings for the interface you are using (Ethernet/Wi-Fi).

  2. Click Save or Apply.

  3. The device may briefly lose connectivity while settings are applied.

  4. Verify new settings on the Dashboard or via your router.

5.6 Troubleshooting

  • No connection after static IP set – Ensure the IP, subnet, and gateway match your network’s addressing scheme.

  • Wi-Fi not available – Check mode selection; only certain modes enable Wi-Fi.

  • PoE not powering device – Confirm your switch/injector supports the correct PoE standard for your SLZB model.

  • Can’t reach device – Use a network scanner or check router’s DHCP leases to find its IP.
